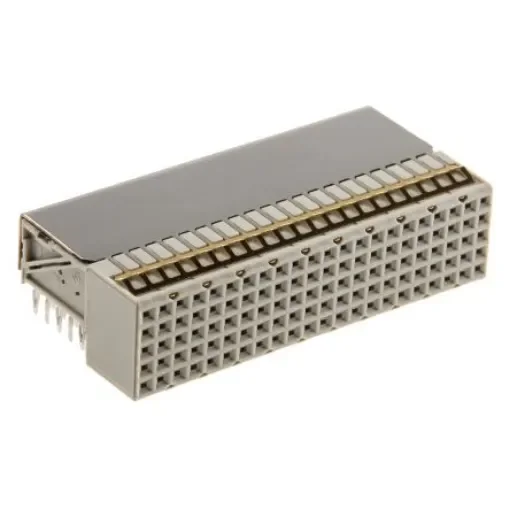

TE Connectivity, Z-PACK HM 2mm Pitch Hard Metric Backplane Connector, Female, Right Angle, 22 Column, 5 Row, 110 Way - 5352152-1

Backplane Connector Type = Hard Metric
Gender = Female
Number of Contacts = 110
Number of Columns = 22
Number of Rows = 5
Housing Material = PET
Pitch = 2mm
Contact Material = Phosphor Bronze
Contact Plating = Gold over Nickel
Current Rating = 1.5A
Voltage Rating = 500 V ac
Termination Method = Solder
Series = Z-PACK HM
Minimum Operating Temperature = -55°C

Z-PACK™Series Connector for Compact PCI System. Offering high density, high performance and reliability Hot-swap capability, benefiting real-time applications Utilising press fit technology and Euro-style packaging Compact PCI can use 32bit or 64bits on 3U cards (connectors P1-5/J1-5) and 6U cards (connectors P1-5/J1-5), using standard and special lengths
