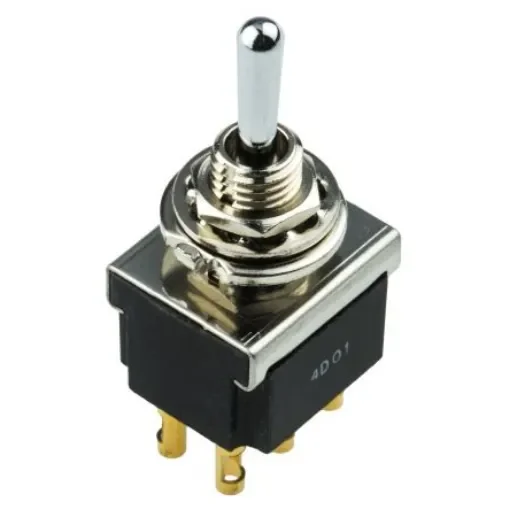

TE Connectivity Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Terminal, 125V ac - FTS0904
Reliable DPDT toggle switch with (On)-Off-(On) operation for efficient control.
Manufacturer part number: FTS0904
GTIN: 5056070981966
Contact Configuration = DPDT
Switch Operation = (On)-Off-(On)
Contact Current Rating = 6 A @ 250 V ac
Mounting Type = Panel Mount
Terminal Type = Solder
Panel Cut Out Diameter = 6.2mm
Actuator Length = 10.5mm
Actuator Material = Chrome Plated Brass
Voltage Rating = 125 V ac, 250V ac
Contact Material = Fine SilverO
Minimum Operating Temperature = -20°C
CSA. Care should be taken when soldering not to overheat the switch assembly For biased switches '(on)' refers to momentary 'on' position. Toggle Switches, Min, Professional. Slow make-and-break action Chrome-plated lever Solder bucket terminals A waterproof cover stock no. ; 321-212 321-212 is available (see accessories) Silver contacts apart from stock nos. ; 317-077 317-077 ; 317-106 317-106 ; 317-099 317-099 ; 317-112 317-112 ; 317-128 317-128 and ; 317-083 317-083 which have gold contacts 0.4VA max load Glass Filled Polyester case
