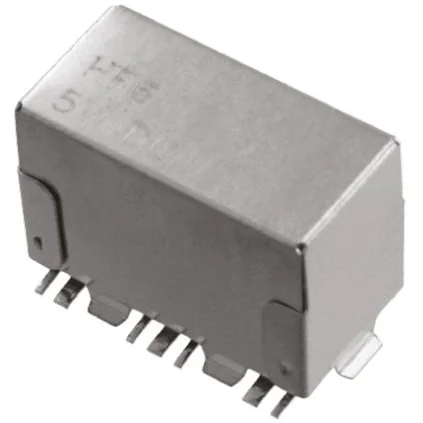

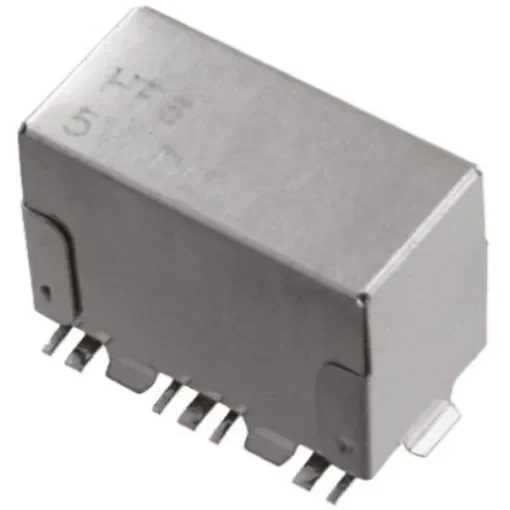

TE Connectivity Surface Mount High Frequency Relay, 5V dc Coil, 50O Impedance, SPDT - 1-1462052-7

Relay Type = HF RelayO
VSWR Voltage Standing Wave Ratio = 1.45 @ 900MHz
Impedance = 50 O, 75O
Contact Configuration = SPDT
Coil Voltage = 5V dc
Mounting Type = Surface Mount
Contact Voltage = 220 V dc, 250V ac
Coil Power = 140mW
Contact Material = Gold Plated
Dimensions = 14.9 x 7.5 x 9.6mm

High Frequency HF6 Series. High frequency relay for 50 Ohm systems. 1 or 2 pole SMT configuration with monostable or bistable coil. Frequency range DC to 6GHz 140mW coil consumption Dimensions 16mm (L) x 7.6mm (W) x 10mm (H)
