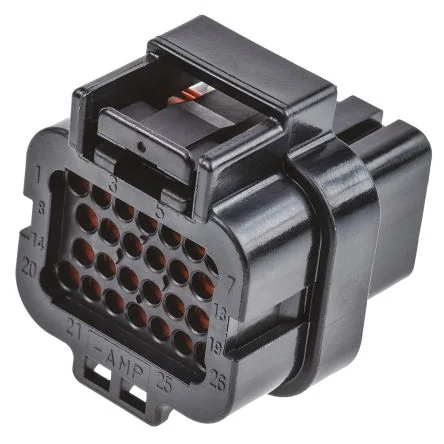

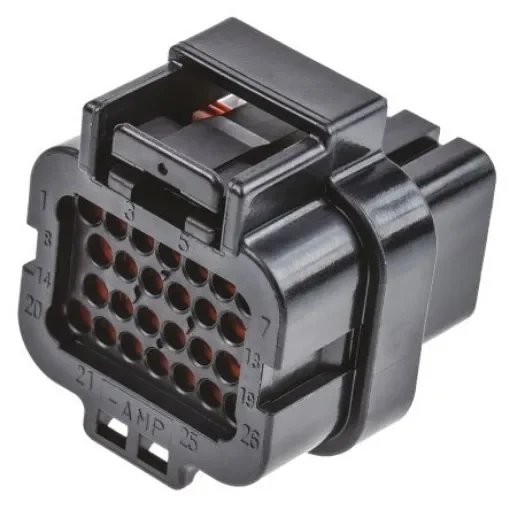

TE Connectivity, Superseal Male Automotive Connector, 3mm Pitch, 26 Way, 4 Row - 1473416-1

Number of Contacts = 26
Number of Rows = 4
Pitch = 3mm
Gender = Male
Mounting Type = Cable Mount
Series = Superseal
For Use With = Receptacle
Body Orientation = Straight
Length = 38.2mm
Width = 38mm
Housing Material = PET

TE Connectivity SUPERSEAL Series 1.0 mm Plug Housing Assembly. Introducing the Superseal series of plug housings from TE Connectivity. Durable ; reliable design, facilitating the mounting between your PCB boards, either through cabling/wiring or fitting further PCB boards together. The Superseal series has a contact size of 1 mm. and comes as either right-angle or straight body orientation. Features and Benefits • Durability: After cap housing is connected, the plug housing is mated and then 78.4 N force is applied in a rocking motion. 25 test cycles. • Thermoplastic / PET housing for reliable performance/resistance. The outer material is lightweight and allows design flexibility. • The SUPERSEAL series has built-in secondary locking mechanisms which facilitate contact insertion into the housing, thus preventing the contacts from backing out during mating. • Polarization key as standard, helping prevent the insertion of another circuit board unless properly slotted in. • A varied amount of contacts (26, 34 ; more) suitable in a wide array of industrial sockets. • 3 mm pitches available. Applications • Industrial controls • Networking systems • Some household appliances
