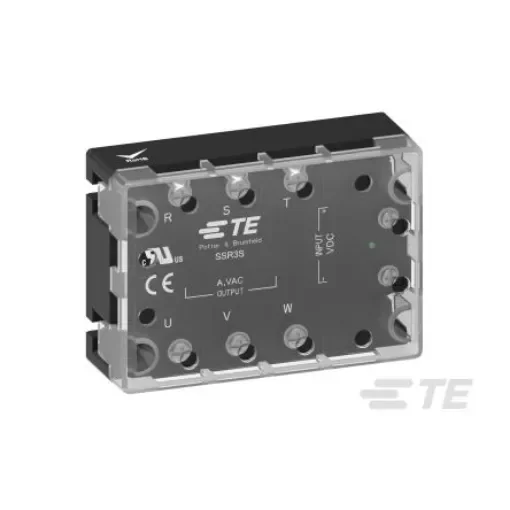

TE Connectivity SSR3 Series Solid State Relay 3 Phase, 75 A Load, Panel Mount, 480 V ac Load - 2345984-9

Maximum Load Current = 75 A
Mounting Type = Panel Mount
Maximum Load Voltage = 480 V ac
Minimum Load Voltage = 48 V ac
Switching Type = Zero
Range = SSR
Contact Configuration = SPST
Output Device = SCR
Series = SSR3

The TE Connectivity Potter & Brumfield Solid State Relays (SSR) are featured in Industrial applications, where silent, fast and long electrical life in switching is required.SSR3 series will add a three phase relay option to our SSR range of products. Which is three individual single phase solid state relays packaged in a single housing, having a common input, to energize each SSR simultaneously. With load ratings ranging from10 up to 75 Amps at 480VAC, SSR3 series has a unique wide range of part numbers including its AC and DC input options. This will offer customers an option to reduce the wiring complexities, assembly time reduction and space utilization especially in applications where the three phase loads are to be operated.Provides a compact, space saving solution in the panel Removes the wiring complexities within a panel Addition of panel mountable option expands product portfolio Ability to switch various load options Reduces assembly time
