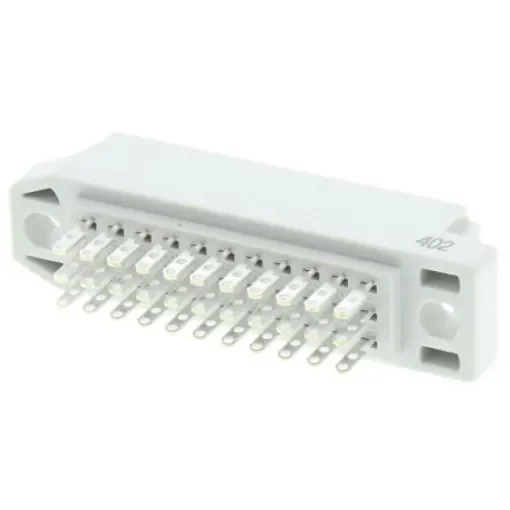

TE Connectivity RP300 Series, 33 Way Rectangular Connector Plug - 1393556-5

Number of Contacts = 33
Gender = Male
Termination Type = Solder
Number of Poles = 33
Current Rating = 4.5A
Voltage Rating = 300 V
Body Orientation = Straight
Series = RP300
Length = 59.2mm
Width = 10.1mm
Depth = 15.1mm
Dimensions = 59.2 x 10.1 x 15.1mm
Minimum Operating Temperature = -55°C

RP300 Male and Female Connectors DIN41618/41622. RP300 series male and female connectors assembly requirements and dimensions in accordance with DIN41618 and DIN41622. These RP300 series plug and socket connectors have solder lugs for free wiring and gold plated contacts with a current capacity of 4.5A. Mating Life 1000 cycles Operating Temperature rating -55 to +125°C Contact resistance =15mO Operating voltage 300V/250Vac rms
