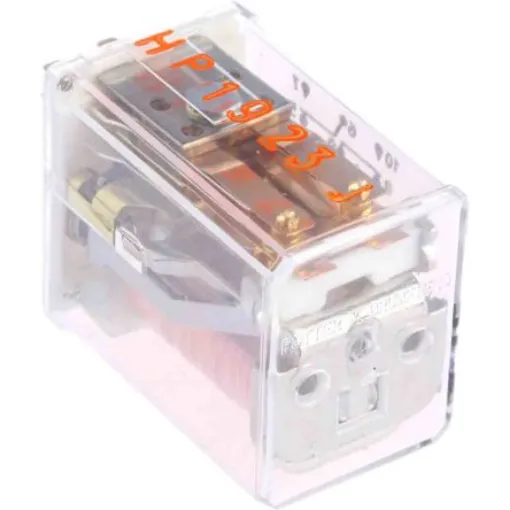

TE Connectivity Power Relay, 24V dc Coil, 5A Switching Current, DPDT - R10-E1X2-V700
Reliable DPDT power relay with 24V DC coil and 5A switching current for various applications.
Manufacturer part number: R10-E1X2-V700
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
TE Connectivity Non-latching RelayThe TE Connectivity R10 series plug-in mount non-latching relay has contact configuration of DPDT. It is actuated with 24VDC coil voltage and 5A switching current. This general-purpose relay has transparent enclosures and solder terminals for stud or plug-in mounting.Features and BenefitsCoil power is 750mW Coil resistance is 700ohm Power consumption is 900mW Operating temperature ranges between -55°C and 75°C Contact material is silver cadmium oxide (AgCdo) Plug-in terminal typeApplicationsCoin changers Audio equipment Elevators Traffic controls Ultrasonic test equipment Parking toll readersCertificationsUL approved CSA certified
