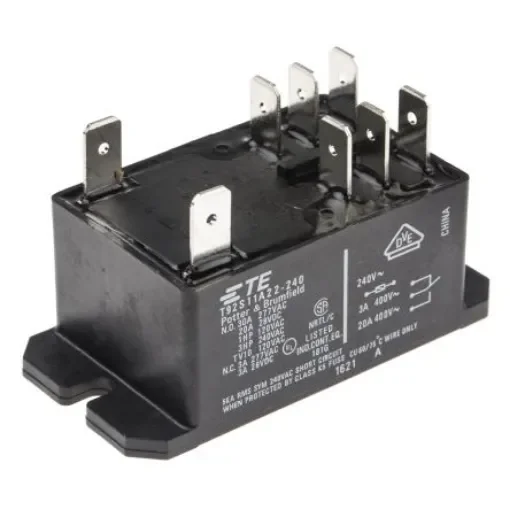

TE Connectivity Panel Mount Power Relay, 230V ac Coil, 30A Switching Current, DPDT - T92S11A22-240 8-1393211-7
TE Connectivity's panel mount power relay is designed for reliable control of compressor loads up to 3.5 tons.
Manufacturer part number: T92S11A22-240 8-1393211-7
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
UL recognised; CSA certified; VDE. T92 Series Flange Mount Relay. Meets requirements of UL 873 and UL 508 spacing - .315in. (8mm) through air, .375in. (9.5mm) over surface Designed to control compressor loads to 3.5 tons, 25.3 FLA, 110 LRA Meets VDE 8mm spacing, 4kV dielectric coil to contacts UL Class F construction system standard UL approved for 600V ac switching (1.5HP) Conforms to VDE 0435, 0631 and 0700 Operating Temperature: -40°C to +65°C
