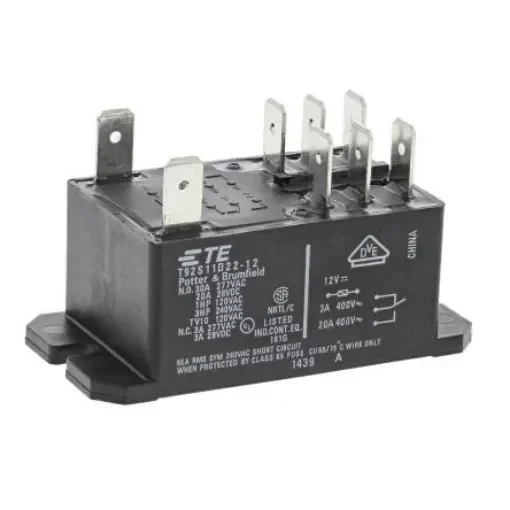

TE Connectivity Panel Mount Power Relay, 12V dc Coil, 30A Switching Current, DPDT - T92S11D22-12 9-1393211-3
Reliable 12V DC panel mount power relay with 30A switching capacity.
Manufacturer part number: T92S11D22-12 9-1393211-3
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Contact Configuration = DPDT
Mounting Type = Panel Mount
Switching Current = 30A
Number of Poles = 2
Latching = No
Terminal Type = Quick Connect
Length = 52.3mm
Height = 30.7mm
UL recognised; CSA certified; VDE. T92 Series Flange Mount Relay. Meets requirements of UL 873 and UL 508 spacing - .315in. (8mm) through air, .375in. (9.5mm) over surface Designed to control compressor loads to 3.5 tons, 25.3 FLA, 110 LRA Meets VDE 8mm spacing, 4kV dielectric coil to contacts UL Class F construction system standard UL approved for 600V ac switching (1.5HP) Conforms to VDE 0435, 0631 and 0700 Operating Temperature: -40°C to +65°C
