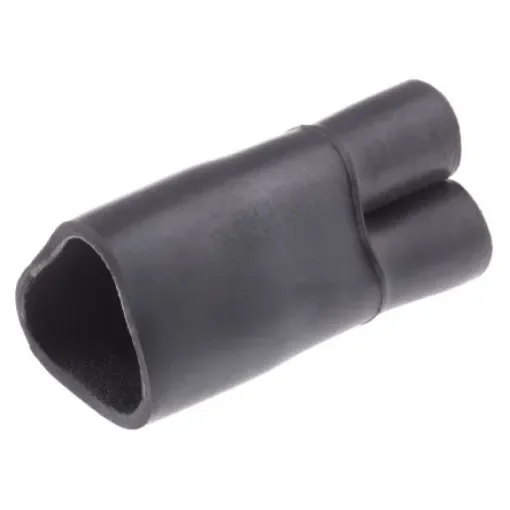

TE Connectivity Multi-Legged Black, Modified Polyolefin Adhesive Lined, 22.86mm - T3-9FR

Type = Multi-Legged
Inside Diameter Primary = 22.86mm
Inside Diameter Secondary = 8.38mm
Adhesive Lined = Yes
Material = Modified Polyolefin
Number of Breakouts = 3
Shrink Temperature = +121°C
Colour = Black
Minimum Operating Temperature = -55°C
Maximum Operating Temperature = +90°C
Shrunk Diameter Primary = 9.14mm
Shrunk Diameter Secondary = 2.29mm

Thermoform® Multi-Legged Boots. Heat shrinkable boots providing a watertight seal and protecting cables and equipment from corrosion and mechanical abuse, for most mass transit, military and commercial marine applications. Flame retardant Adhesive sealant replaces tapes, epoxies and grease Reliable sealing on cable jackets and on lead, steel, copper, aluminium and most elastomeric insulation materials. Water tight. Range; -55° to +90°C, min recovery +120°C
