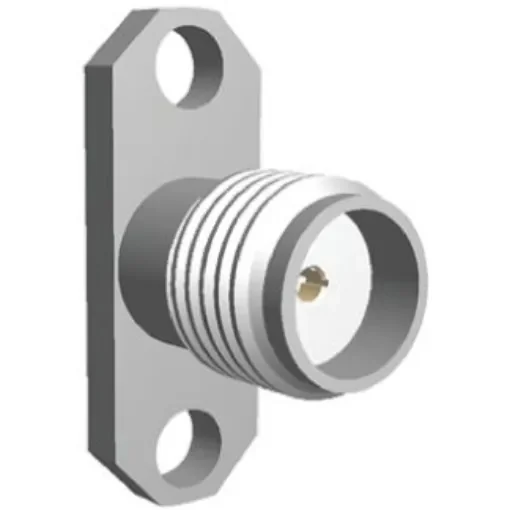

TE Connectivity, Jack Flange Mount SMA Connector, Solder Termination, Straight Body - 2052 5674 02

Coaxial Connector Type = SMA Connector
Mounting Type = Flange Mount
Termination Method = Solder
Body Orientation = Straight
Size = Standard
Bulkhead = No
Operating Frequency = 18GHz
Body Plating = Passivated Stainless Steel
Polarity = Normal
Contact Material = Beryllium Copper
Contact Plating = Gold

TE Connectivity SMA Flange Mount Jack Receptacles for Microstrip Transmission Line Circuits. SMA flange mount jack receptacles for microstrip transmission line circuits with a passivated stainless steel body and epoxy contact captivation. These SMA flange mount jack receptacles are rear panel mounting with panel mount retention and have a gold plated beryllium copper centre contact. The frequency for these SMA flange mount jack receptacles is DC - 18 GHz with an RF leakage (db min.) of -(60-fGHz).
