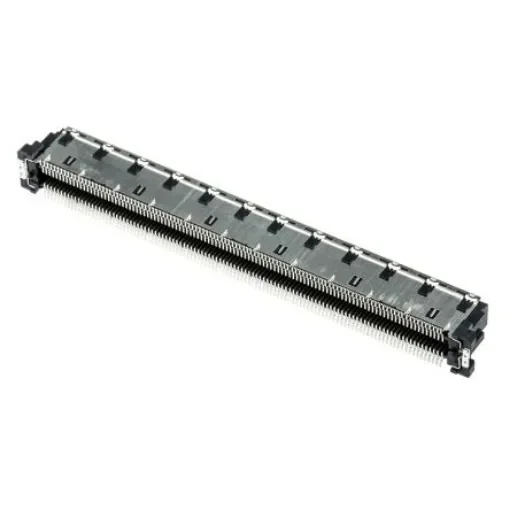

TE Connectivity Free Height Series Straight Surface Mount PCB Header, 220 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded - 3-6318491-6

Series = Free Height
Pitch = 0.5mm
Number of Contacts = 220
Number of Rows = 2
Body Orientation = Straight
Shrouded/Unshrouded = Shrouded
Mounting Type = Surface Mount
Termination Method = Solder
Contact Plating = Gold
Current Rating = 500.0mA
Voltage Rating = 50.0 V

TE Connectivity 0.5 mm FH (Free Height) Connectors. 0.5 mm FH (Free Height) 2 piece open pin field connector system designed for parallel board to board stacking applications. These 0.5mm FH plug and receptacle connectors provide a PICMG COM Express standard interface between embedded modules and carrier cards. The high density 0.5 mm pitch of these FH connectors results in a small footprint and offers PCB space saving. The housings of these 0.5mm FH connectors feature polarization to prevent mismating and PCB solder pegs provide a secure retention on the PCB. The 0.5mm FH receptacle connectors have ground contacts and the plugs have giga ground shields. These 0.5mm FH connectors are available in 4mm, 5mm and 8mm heights, which, when combined can create a range of PCB spacing. Features and Benefits. • PICMG COM Express standard interface • High density PCB space saving 0.5 mm pitch • Polarized housings to prevent mismating • Solder pegs for secure retention to PCB • Grounding contacts and shields. Product Application Information. These 0.5mm FH connectors are ideal for downsizing applications that require high density parallel stacked PCBs. Applications include home security devices, consumer electronics, data storage devices, telecommunications, customized PCB boards and industrial computing devices.
