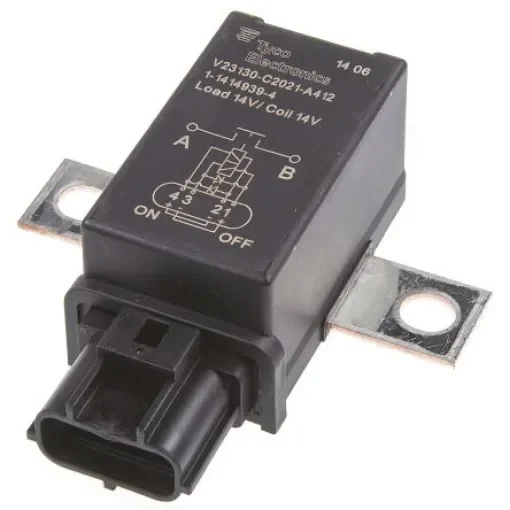

TE Connectivity Flange Mount Automotive Relay, 12V dc Coil Voltage, 190A Switching Current, SPST - V23130C2021A412 1-1414939-4
High-performance flange mount automotive relay with 190A switching current and 12V coil voltage.
Manufacturer part number: V23130C2021A412 1-1414939-4
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Coil Power = 7W
Coil Resistance = 4.7O
Contact Configuration = SPST
Number of Poles = 1
Switching Current = 190A
Maximum Switching Voltage DC = 12V dc
Mounting Type = Flange Mount
Terminal Type = Screw
Contact Material = Silver Alloy°C
TE Connectivity Non-latching RelayThe TE Connectivity BDS-A series flange mount automotive non-latching relay has a contact configuration of SPNO. It is actuated with 12VDC coil voltage and 190A switching current.Features and BenefitsCoil resistance is 4.7ohm Electrically settable and resettable ON/OFF bi-stable device High peak current carrying capability is up to 1500A Limiting continuous current 190A at 85°C Suitable for voltage levels up to 42VApplicationsCoil suppression circuits Cooling fan circuits Wiper circuitsCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007 IP54 rated
