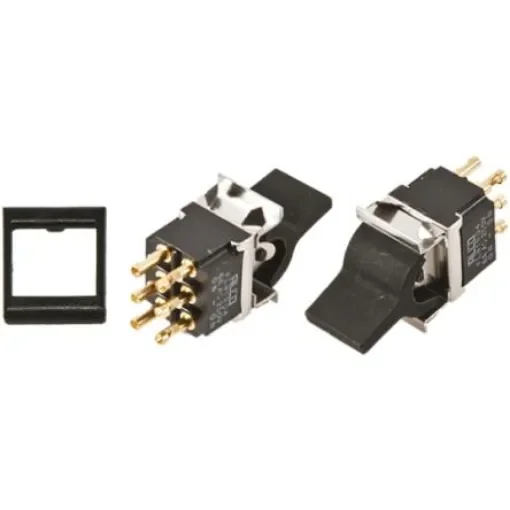

TE Connectivity DPDT, Latching Rocker Switch Panel Mount - FLN19BLACK04

Switch Operation = Latching
Panel Cut Out Width = 13mm
Panel Cut Out Height = 15.9mm
Contact Current Rating = 6 A
Mounting Type = Panel Mount
Terminal Type = Wire Lead
AC Voltage Rating = 250V
Contact Material = Silver Alloy°C

Miniature Lever/Rocker Switches. Switches with body and switch mechanism identical to the miniature toggle switches with silver contacts, but fitted with alternative style of actuators in a choice of colours Each switch is supplied with an optional black bezel that may be fitted by snapping it over the flanges on two sides of the switch, prior to fitting to a panel by means of clipping the frame into a prepared cut-out (hole cutter see stock no. ; 545-323 545-323 is suitable) These switches have the advantage of toggle switch design, compact dimensions, and are useful where toggle levers are undesirable The use of alternative styles and colours allows the possibility of coding switch functions Contact Rating-A 6A Contact Rating-V 28Vdc/250 Vac
