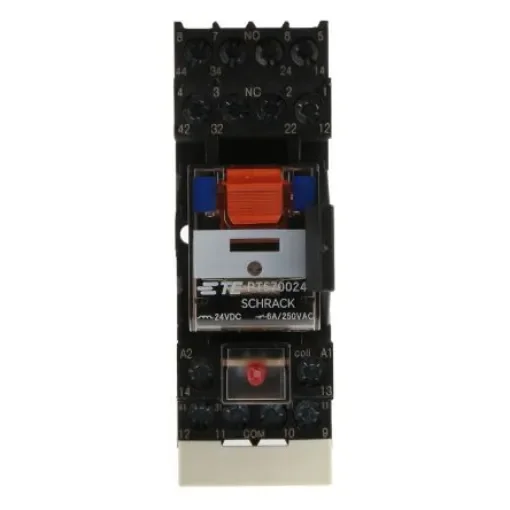

TE Connectivity DIN Rail Power Relay, 24V dc Coil, 6A Switching Current, 4PDT - PT5S7LC4 1415076-1
Reliable DIN rail power relay with 24V DC coil and 6A switching current for efficient control.
Manufacturer part number: PT5S7LC4 1415076-1
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = 4PDT
Mounting Type = DIN Rail
Switching Current = 6A
Number of Poles = 4
Latching = No
Terminal Type = Screw
Length = 73.5mm
Coil Resistance = 777O
Coil Power = 750mW
Height = 58mm
Maximum Switching Power AC = 1.5 kVA
TE Connectivity Non-latching RelayThe TE Connectivity PT series DIN rail mount non-latching relay has contact configuration of 4PDT. It is actuated with 24VDC coil voltage and 6A switching current. This relay has a mechanical and electrical indicator and manual test tab. This package consists of the relay, DIN rail socket, module, retainer and marking tab.Features and BenefitsCoil resistance is 777ohm Coil power is 750mW Screw terminal type LED and protection diode module DIN socket has a logical arrangement of control/load terminals, with a second A2 terminal for easier loopingCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007 IEC 61810-1 VDE approved
