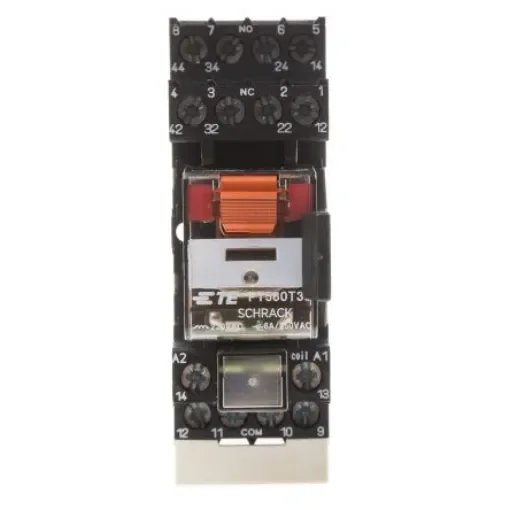

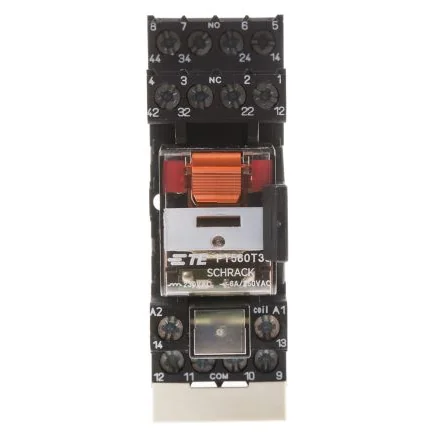

TE Connectivity DIN Rail Power Relay, 230V ac Coil, 6A Switching Current, 4PDT - PT5S8TD0 4-1415075-1
Reliable DIN rail power relay with 6A switching current and 230V AC coil for efficient performance.
Manufacturer part number: PT5S8TD0 4-1415075-1
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Switching Current = 6A
Latching = No
Terminal Type = Screw
Length = 73.5mm
Coil Resistance = 19465O
Coil Power = 1W
Depth = 27mm
Maximum Switching Power AC = 1.5 kVA
VDE. Interface Modules PT Relay Packages. Package consists of relay, DIN rail socket, module, retainer and marking tab Mechanical and electrical indicator Manual test tab DC versions complete with LED ; protection diode module AC versions complete with LED ; varistor module DIN socket has logical arrangement of control/load terminals, with a second A2 terminal for easier looping Complies to IEC 61810-1
