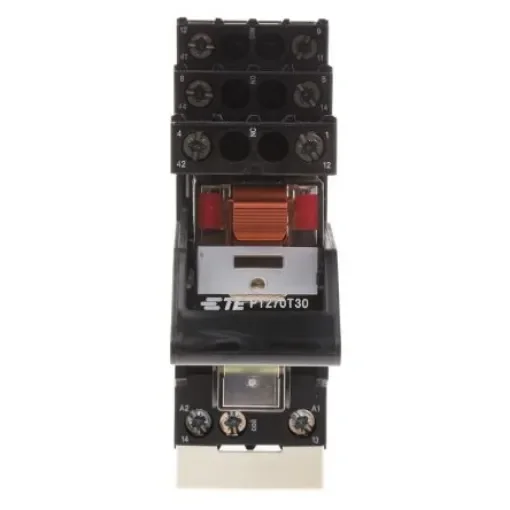

TE Connectivity DIN Rail Power Relay, 230V ac Coil, 12A Switching Current, DPDT - PT2L7TD0 9-1415534-4
Reliable DIN Rail Power Relay with 230V AC coil and 12A switching capacity.
Manufacturer part number: PT2L7TD0 9-1415534-4
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 230V ac
Contact Configuration = DPDT
Mounting Type = DIN Rail
Switching Current = 12A
Number of Poles = 2
Latching = No
Terminal Type = Screw
Length = 77mm
Coil Resistance = 19465O
Coil Power = 1W
Contact Material = Silver Nickel Alloy°C
Maximum Switching Power AC = 3 kVA
VDE. Interface Modules PT Relay Packages. Package consists of relay, DIN rail socket, module, retainer and marking tab Mechanical and electrical indicator Manual test tab DC versions complete with LED ; protection diode module AC versions complete with LED ; varistor module DIN socket has logical arrangement of control/load terminals, with a second A2 terminal for easier looping Complies to IEC 61810-1
