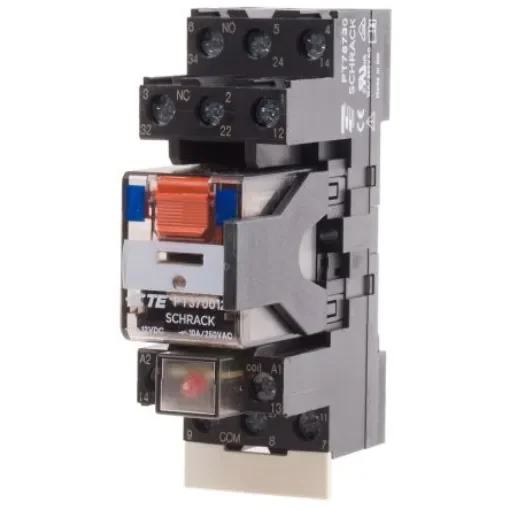

TE Connectivity DIN Rail Power Relay, 12V dc Coil, 10A Switching Current, 3PDT - PT3S7LB2 1-1415075-1
Reliable DIN Rail Power Relay with 12V DC coil and 10A switching current for efficient control.
Manufacturer part number: PT3S7LB2 1-1415075-1
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Contact Configuration = 3PDT
Mounting Type = DIN Rail
Switching Current = 10A
Number of Poles = 3
Latching = No
Terminal Type = Screw
Length = 73.5mm
Coil Resistance = 192O
Height = 58mm
Maximum Switching Power AC = 2.5 kVA
VDE. Interface Modules PT Relay Packages. Package consists of relay, DIN rail socket, module, retainer and marking tab Mechanical and electrical indicator Manual test tab DC versions complete with LED ; protection diode module AC versions complete with LED ; varistor module DIN socket has logical arrangement of control/load terminals, with a second A2 terminal for easier looping Complies to IEC 61810-1
