TE Connectivity Circular Connector, 7 Contacts, Cable Mount, Subminiature Connector, Socket, Female, IP65, TRIAD 01 - 3-1437719-9

Number of Contacts = 7
Mounting Type = Cable Mount
Connector Size = Subminiature
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Solder
IP Rating = IP65
Current Rating = 1.0A
Series = TRIAD 01
Voltage Rating = 60.0 V
Strain Relief = Yes
Maximum Operating Temperature = +80°C

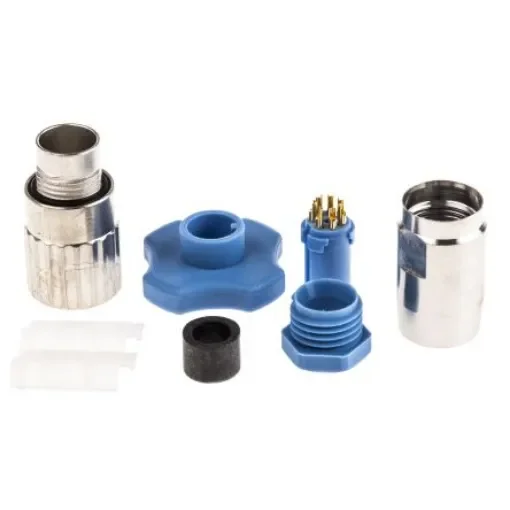

Cable Plug, Socket ; Assembly. Cable mount plugs and sockets will mate each other to make in-line connections as well as with panel and PCB mount types. They are supplied complete with assembly tool and instructions. Alternatively, cable assemblies are available also that have 3-metre cable lengths and are pre-wired and moulded onto cable plugs. The body shell is the same size for all number of ways. Plug length 40mm, outside diameter 12mm Socket length 38mm, outside diameter 12mm
