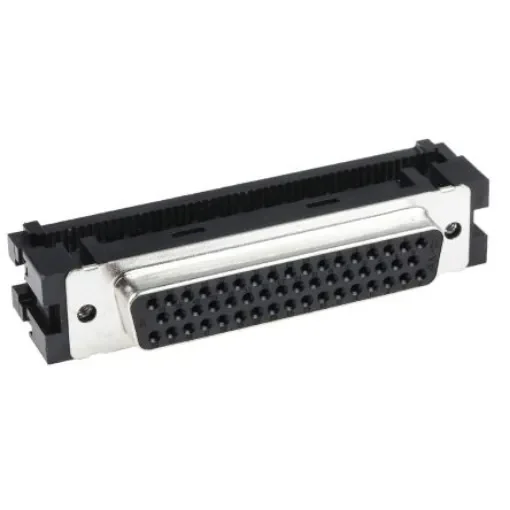

TE Connectivity Amplimite HDF-20 50 Way Right Angle Cable Mount D-sub Connector Socket, 2.76mm Pitch - 1658606-1

Number of Contacts = 50
Termination Method = IDC
Voltage Rating = 250.0 V
Length = 74.16mm
Width = 23.01mm
Depth = 15.39mm
Series = Amplimite HDF-20mm
Minimum Operating Temperature = -55.0°C

Stock number ; 798-1515 798-1515 (9 way socket connector) has #4-40 locking fasteners colour-coded Blue. AMPLIMITE Series HDF-20 Low Profile IDC Metal Shell D-Sub Connectors. AMPLIMITE HDF-20 series low profile metal shell IDC d-sub connectors for flat ribbon cable. These AMPLIMITE HDF-20 series IDC d-sub ribbon cable connectors have pre-assembled black 94V-0 rated thermoplastic housings and covers with a tin plated steel front shell and are pre-loaded with duplex plated phosphor bronze contacts that accept 28 AWG and 26 AWG solid and stranded round conductor flat ribbon cable on 1.27mm centres. Part numbers 1658613-x and 1658612-x have standard mounting holes. Part numbers 1658608-x , 1658610-x , 1658607-1 and 1658606-1 have brass 4-40 threaded inserts. These AMPLIMITE HDF-20 series d-sub ribbon cable connectors mate with HD-20 Board Mount, HDP and HDE (sizes 1-4 only) d-sub connectors. For optional strain relief see stock numbers ; 409-3387 409-3387 and ; 409-3422 409-3422 typically. For screwlocks and screws see stock number ; 680-9358 680-9358 , ; 717-4473 717-4473 and ; 680-9351 680-9351 typically. Low profile black metal body cable mounting IDC D plugs and socket connectors Use assembly tool stock no. ; 301-8177 301-8177 and plug and socket die sets stock no.s ; 409-3438 409-3438 , ; 409-3444 409-3444 See also accessories, typically stock no. ; 450-9258 450-9258
