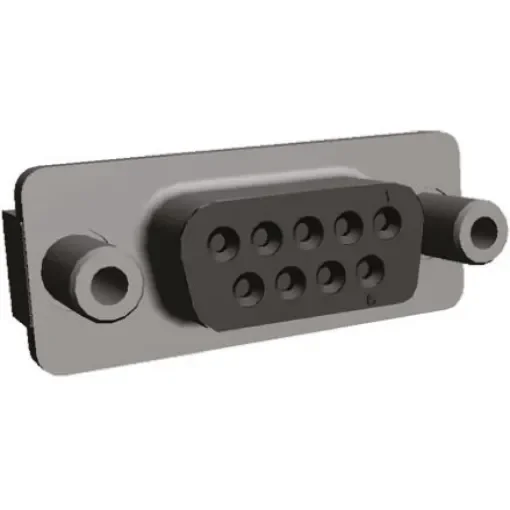

TE Connectivity Amplimite HD-20 9 Way Through Hole D-sub Connector Socket, with 4-40 UNC, Female Screw Lock - 1-5747150-4

Number of Contacts = 9
Gender = Female
Body Orientation = Straight
Mounting Type = Through Hole
Mounting Hardware = 4-40 UNC, Female Screw Lock
Housing Material = Thermoplastic
Length = 30.89mm
Width = 5.99mm
Depth = 12.55mm
Series = Amplimite HD-20mm

AMPLIMITE D-sub Connector, HD-20 Series, Front Metal Shell, PCB Mount, Straight Post. AMPLIMITE HD-20 series straight posted PCB mount d-sub connectors with tin plated steel front shells, 94V-0 black thermoplastic housings and preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with 0.00076 gold plating or gold flash and 3.18mm or 4.32mm post lengths. These AMPLIMITE HD-20 PCB mount straight post d-sub connectors are available with a variety of PCB retention types including brass threaded inserts and zinc screwlocks.
