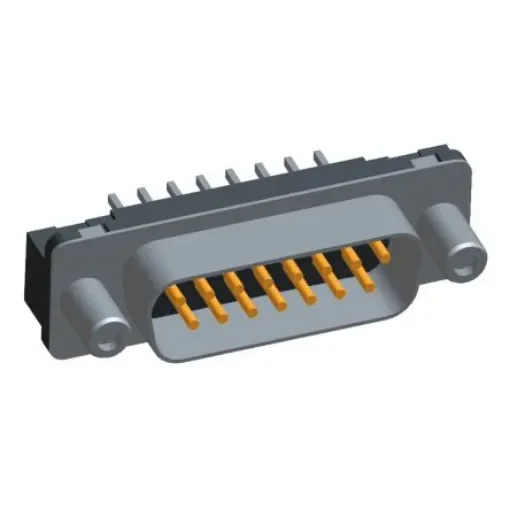

TE Connectivity Amplimite HD-20 15 Way Through Hole D-sub Connector Plug, 2.74mm Pitch, with 4-40 UNC, Female Screw Lock - 5787177-1

Number of Contacts = 15
Gender = Male
Body Orientation = Straight
Mounting Type = Through Hole
Pitch = 2.74mm
Termination Method = Solder
Housing Material = Nylon
Length = 39.14mm
Width = 11.83mm
Depth = 12.55mm
Series = Amplimite HD-20mm
Minimum Operating Temperature = -55.0°C

AMPLIMITE HD-20 Series, Front Metal Shell, PCB Mount d-Sub Connectors with ACTION PIN Contacts. AMPLIMITE HD-20 series PCB mount d-sub plug and receptacle connectors with a tin plated steel front metal shell and duplex plated ACTION PIN contacts and are suitable for mounting on a PCB with a 2.36mm thickness. These AMPLIMITE HD-20 PCB d-sub connectors are available with a variety of mating hardware options including fixe female 4-40 screwlocks, 4-40 threaded inserts and 3.05mm mounting holes (Please see table for details)
