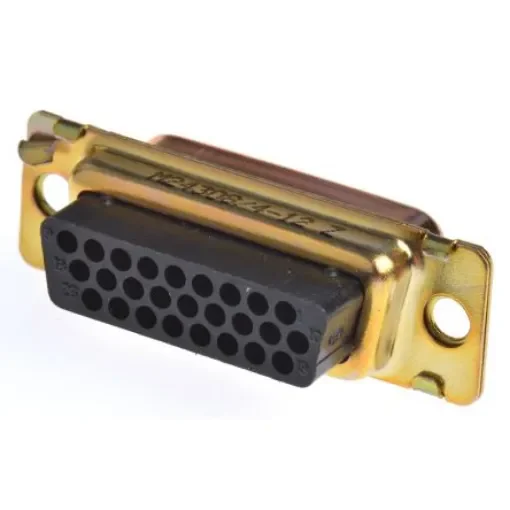

TE Connectivity Amplimite 90 26 Way Cable Mount D-sub Connector Plug - 1757823-2
TE Connectivity Amplimite 90 D-sub connector with 26 contacts, designed for military and industrial use.
Manufacturer part number: 1757823-2
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Number of Contacts = 26
Gender = Male
Body Orientation = Straight
Mounting Type = Cable Mount
D Connector Type = High Density D-Sub
Termination Method = Crimp
Housing Material = Zinc Plated Steel
Length = 39.52mm
Width = 12.93mm
Depth = 10.97mm
Series = Amplimite 90mm
Contact Size = 20
AMPLIMITE D-Sub connector, Series 90, Military Spec, MIL-C-24308. AMPLIMITE series 90 high density MIlitary Specification cable mount d-sub plug and receptacle connectors conforming to the military specification of MIL-C-24308 ideal for use in military equipment, ground support devices, computer peripheral equipment, modems and industrial instrumentation. These AMPLIMITE series 90 Mil Spec d-sub cable connectors are available with cadmium plated steel shells (part numbers 2045xx-1) or zinc plated steel shells (part numbers 175782x-1) whilst stock number ; 718-3865 718-3865 has a gold plated brass shell. All versions of these MIL Spec d-sub connectors have black PPS GST-40F inserts as per MIL-M-24519, 3.05mm mounting holes and retention clips. The size 22 contacts for these series 90 d-sub military Mil Spec cable connectors are not supplied and must be ordered separately, see stock number ; 718-4004 718-4004 for crimp pin contacts and stock number ; 718-4001 718-4001 for crimp socket contacts. The series 90 military spec d-sub cable connectors will mate with any other connector that has the same insert arrangement.
