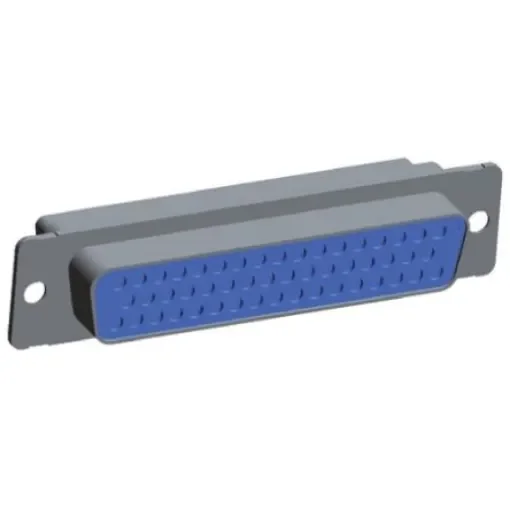

TE Connectivity Amplimite 109 50 Way Cable Mount D-sub Connector Socket - 1757820-5
TE Connectivity Amplimite 109 D-sub connector with 50 contacts, ideal for military and industrial use.
Manufacturer part number: 1757820-5
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Number of Contacts = 50
Gender = Female
Body Orientation = Straight
Mounting Type = Cable Mount
Termination Method = Crimp
Housing Material = Steel
Length = 67.31mm
Width = 9.52mm
Depth = 15.75mm
Series = Amplimite 109mm
Contact Size = 20
AMPLIMITE D-Sub Connector, Series 109, Military Spec, MIL-C-24308. AMPLIMITE series 109 standard density MIlitary Specification cable mount d-sub plug and receptacle connectors conforming to military specification of MIL-C-24308 ideal for use in military equipment, ground support devices, computer peripheral equipment, modems and industrial instrumentation. These AMPLIMITE series 109 Mil Spec d-sub cable connectors have a zinc plated steel shells, 3.05mm mounting holes and black polyester inserts as per MIL-M-24519. The size 20 contacts required or supplied, see table, for these series 109 d-sub military Mil Spec cable connectors are stock number ; 680-9210 680-9210 for crimp pin contacts and stock number ; 680-9222 680-9222 for crimp socket contacts. The series 109 military spec cable connectors will mate with any other connector that has the same insert arrangement.
