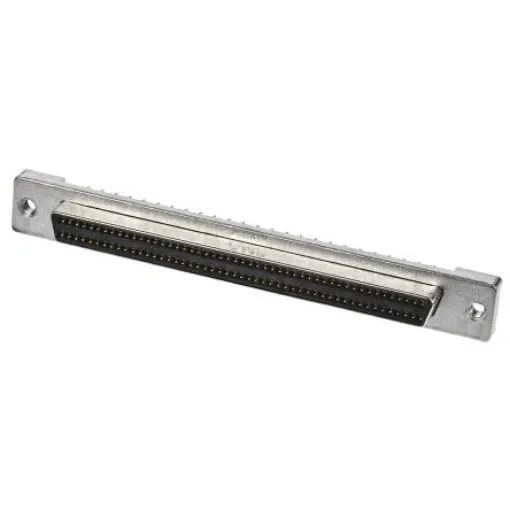

TE Connectivity Amplimite .050 III 100 Way Through Hole D-sub Connector Socket, 2.54mm Pitch - 5749070-9

Number of Contacts = 100
Gender = Female
Body Orientation = Straight
Mounting Type = Through Hole
Pitch = 2.54mm
Termination Method = Solder
Current Rating = 1A
Housing Material = Thermoplastic
Voltage Rating = 30.0 V
Length = 84.2mm
Width = 8.71mm
Depth = 10.31mm
Series = Amplimite .050 IIImm
Maximum Operating Temperature = +105°C

Shielded AMPLIMITE .050 Series Connectors, Series III, are approved to SCSI-2, SCSI-3, EIA RS-232, ISO-11569*, IPI-2, HIPPI, and IEE 802.3 MII standards. AMPLIMITE .050 Series III D-Sub Shielded Receptacle Header Connectors. AMPLIMITE .050 Series III PCB d-sub receptacle headers with a compact space saving design and high density D type interface with 1.27 x 2.54 mm contact spacing. These AMPLIMITE .050 Series III PCB mount d-sub connectors have full shielding which offers excellent EMI/RFI protection. The housings are made from high temperature thermoplastic which are compatible with reflow solder processes. The right angle PCB d-sub headers are available with integral board locks that enable a secure connection to the PCB and provide grounding. These AMPLIMITE .050 PCB D-sub headers are also available with rails and latch blocks which lock the header to the corresponding mating cable connector. The rails also offer extra contact protection by preventing a side to side rocking movement during unmating. Features and Benefits. • Compact, space saving design • Full shielding for EMI/RFI protection • Compatible with surface mount reflow solder process • Integral board locks secure PCB connection and grounding • Rails and latch blocks for secure mating connection. Applications. These AMPLIMITE .050 Series III PCB d-sub connectors are suitable for use in applications where high density and space saving are key requirements. Applications include consumer electronics, telecommunications, Local Area Networks, military, industrial and medical equipment
