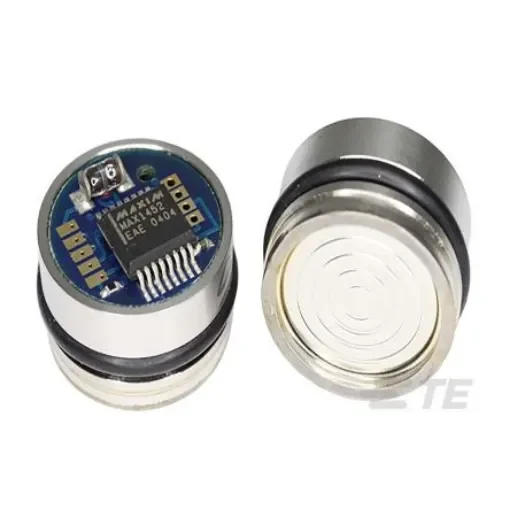

TE Connectivity 86A Series Pressure Sensor, 0.7bar Min, 35bar Max, Analogue Output, Absolute Reading - 86A3R-000000-005PG

The TE Connectivity 86A is a small profile, media compatible, piezo resistive silicon pressure sensor packaged in a 316L stainless steel housing. The 86A is designed for O-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. It is designed for high performance, low pressure applications. A custom ASIC is used for temperature compensation, offset correction, and provides an amplified output of 0.5 to 4.5V.0.5 - 4.5V high level output Down to ±3.0% total error band ±1.0% pressure non linearity
