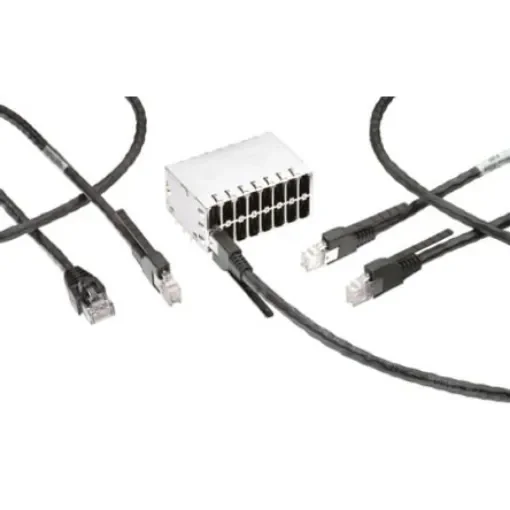

TE Connectivity, 250mm Cat5e, Black RJ.5 to Male RJ45 Female, F/UTP Shielded, Terminated LSZH Sheath - 2159658-1

LAN Category = Cat5emm
Terminated/Unterminated = Terminated
Shield Type = F/UTP
Connector 1 = RJ.5
Connector 2 = RJ45
Shielded/Unshielded = Shielded
Sheath Colour = Black
Wiring Configuration = Straight Through
Fire Behaviour = Low Smoke Zero Halogen (LSZH)
American Wire Gauge = 26 AWG

TE Connectivity RJ45 to RJ.5 Cable Assembly, CAT 5E. From TE Connectivity, this RJ.5 cable assembly has an RJ.5 plug and an RJ45 socket, and is ideal for connecting between the two systems. The RJ.5 connector system offers a high density Ethernet link for those who desire a lower cost per port while maintaining the convenience of a single connector per channel. The port spacing is on a 7mm centreline, occupying half the space of that of traditional RJ45 Ethernet link. The receptacle and cable assembly have been redesigned to eliminate the undesirable RJ45 split pair configuration, resulting in heightened electrical performance. In addition, the latching feature incorporates an easy-to-use lanyard that will facilitate up to 96 ports on a single line card. Due to the density on the receptacle face, the light from the LEDs is transferred out through the cable boot, bringing the port indicator light closer to the end user.
