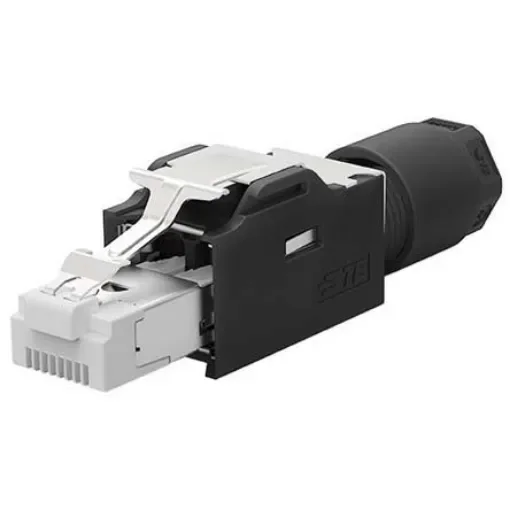

TE Connectivity 2120892 Series Male RJ45 Connector, Cable Mount, Cat6a Straight 1 Port 8 -Way - 2120892-1

Ethernet Connector Type = RJ45 Connector
LAN Category = Cat6a
Number of Ports = 1
Number of Ways = 8
Shield Type = Shielded
Orientation = Straight
IP Rating = IP20
Length = 60.06mm
Width = 13.9mm
Depth = 17.66mm
Series = 2120892
Contact Material = Copper Alloy
Contact Plating = Gold over Palladium Nickel

TE Connectivity Cat6a Industrial RJ45 Plug Connector. Cat6a industrial RJ45 shielded plug connector with an IP20 rating suitable for industrial Ethernet applications to 10 Gbit/s. This Cat6a industrial RJ45 plug connector has an inverted jack face and a standard profile. The IDC contacts of this RJ45 industrial plug enable a tool-free connection to the wire. When the housing is closed the excess wire is cut off and the wires are connected to the contacts. This automatic wire cut-off function provides an error free installation and optimal performance in the field. This Cat6a industrial RJ45 plug connector mates with standard 8 position RJ45 sockets according to DIN EN 60603-7-1. All models are highly reliable and excellent quality. Features and Benefits. Industrial Ethernet 10 Gbit/s performance. Shielded housing. IDC contacts for tool free connection. Automatic wire cut off function
