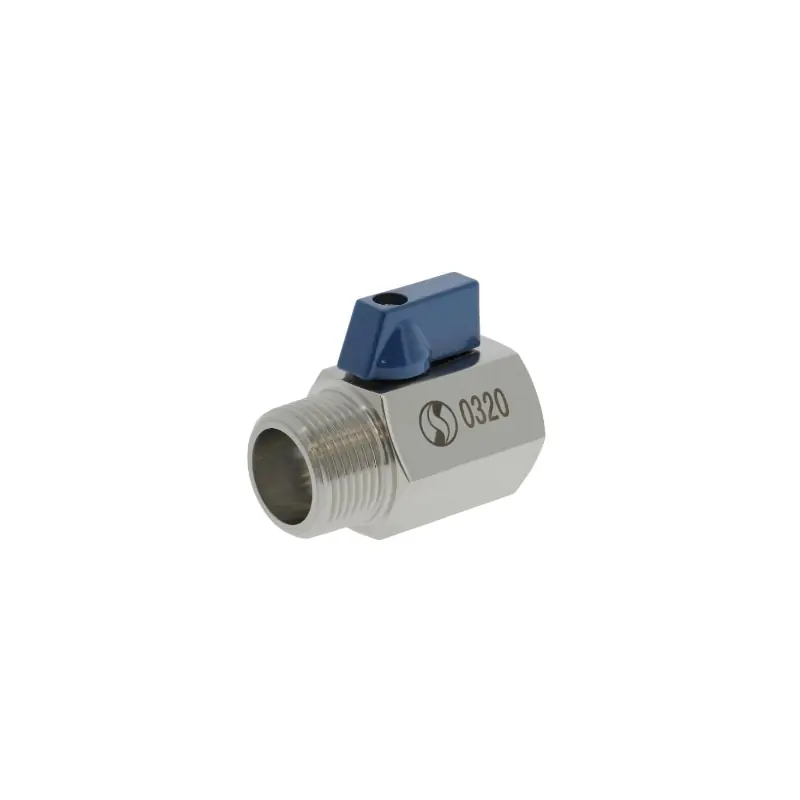

The Mini Stainless Steel Male/Female Ball Valve is a compact and durable valve designed for precise flow control in small-diameter piping systems. Ideal for applications in chemical and pharmaceutical industries, petrochemical sectors, hydraulic installations, and compressed air systems.
- Compact Design: Ideal for installations with limited space.
- High Pressure Rating: Operates up to 63 bar (914 psi).
- Wide Temperature Range: Suitable for temperatures from -20°C to +200°C (-4°F to 392°F).
- Corrosion Resistance: Constructed with stainless steel for enhanced durability.
- Manual Operation: Equipped with a handle for on/off flow control.
Technical Specifications
- Pressure Rating: 63 bar (914 psi)
- Temperature Range: -20°C to +200°C (-4°F to 392°F)
- Body Material: Stainless steel ASTM A351 CF8M
- Ball Material: Stainless steel 316
- Thread Type: BSPP (British Standard Pipe Parallel)
- Nominal Bore Diameter: 7 mm
- End Connections: Male to Female
- Seal Materials: PTFE/FKM
- Operation: Manual handle
Materials
- Body: Stainless steel ASTM A351 CF8M
- Ball: Stainless steel 316
- Seals: PTFE/FKM
Dimensions
- Nominal Bore Diameter: 7 mm
- Overall Length: Approximately 2 inches (50 mm)
- Overall Width: Approximately 1.5 inches (38 mm)
- Height: Varies with handle type and size
Compatibility Information
This valve is compatible with various media, including water, air, oils, and corrosive and aggressive substances. It is suitable for applications requiring manual operation and is not designed for electric or pneumatic control. For such applications, valves with an ISO-Top flange (ISO 5211) are recommended.
