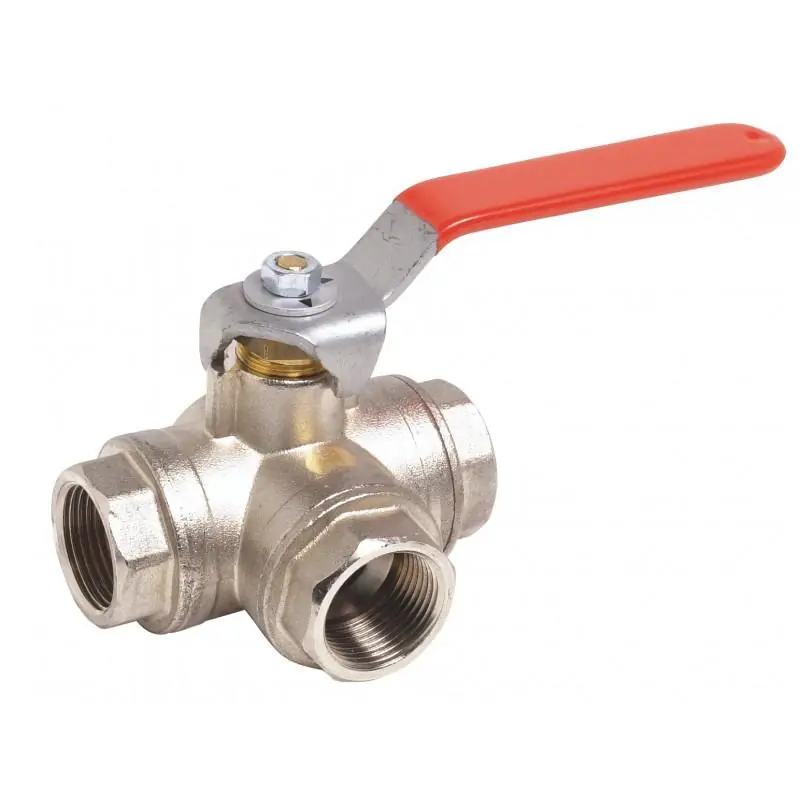

Tameson - 3-Way L-Port Ball Valve for Flow Control - BL3BML-114

• Key Features:
• 3-way L-port design for flow direction control.
• G 1-1/4 inch threaded ports (BSPT).
• Nickel-plated brass housing and chromium-plated brass ball.
• PTFE/FKM sealings.
• Suitable for various media, including water, compressed air, oils, fuels (excluding gasoline), heating oil, solvents, weak acids, and alkalis.
• Operating pressure up to 35 bar (508 psi).
• Temperature range from -10°C to 120°C (14°F to 248°F).
• Pressure inlet possible on all three ports.
• Manual operation with a quarter-turn handle.
• Not suitable for electrical or pneumatic control.

Technical Specifications:

• Valve Bore Diameter: 29 mm
• Pressure Rating: Up to 35 bar (508 psi)
• Temperature Range: -10°C to 120°C (14°F to 248°F)
• Materials:
• Housing: Nickel-plated brass
• Ball: Chromium-plated brass
• Seals: PTFE/FKM
• Port Type: G 1-1/4 inch threaded (BSPT)
• Flow Direction Control: Manual operation with a quarter-turn handle
• Pressure Inlet: Possible on all three ports
• Actuation: Manual only; not suitable for electrical or pneumatic control

Compatibility Information:

• Compatible with piping systems using G 1-1/4 inch BSPT threads.
• Suitable for various media, including water, compressed air, oils, fuels (excluding gasoline), heating oil, solvents, weak acids, and alkalis.
• Not suitable for electrical or pneumatic control applications.

Additional Details:

• The L-port design allows for directing flow from one of two inlets to one outlet (or vice versa).
• Pressure inlet is possible on all three ports.
• The valve lever can be locked with a padlock (sold separately).
• Not suitable for aggressive media.
