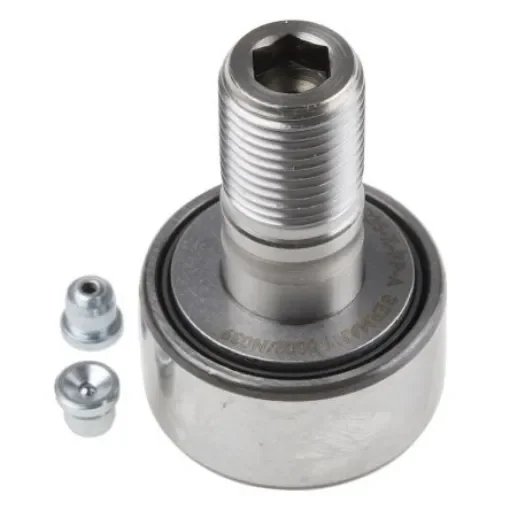

Stud Cam Follower KR35-X-PP-A, 16mm ID, 35mm OD

Roller Diameter = 35mm
Roller Length = 52mm
Type = Stud
Bore Size = 16mm
Static Load Rating = 14300N
Dynamic Load Rating = 9700N

Stud type track rollers are similar in their construction to single and double row yoke type track rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole. Due to the thick-walled outer ring with profiled outside surface and the rolling element set, they can support high radial loads as well as axial loads arising from slight misalignment and skewed running, they are suitable for applications such as cam gears, bed ways and conveying equipment. The series PWKR(E) are supplied in an X-life design.Outside surface profile of the outer ring Stud type track rollers without eccentric collar With cage, with full complement needle roller or cylindrical roller set Axial guidance of outer ring Anti-corrosion protection Sealing Lubrication Stud type track rollers with eccentric collar With cage or full complement cylindrical roller set Axial guidance of outer ring Sealing Lubrication Operating temperature Suffixes
