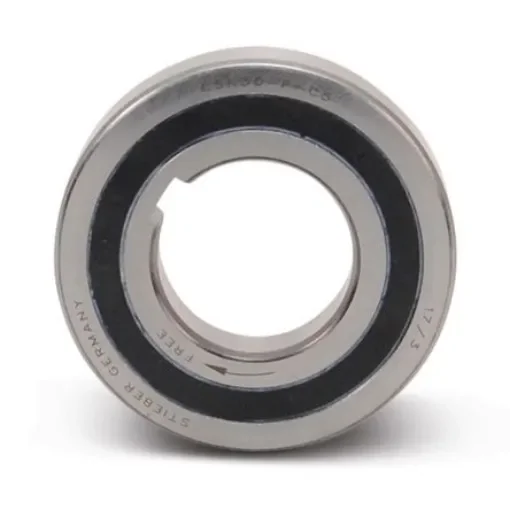

Stieber CSK 35-P Sprag Clutch Bearing 35mm I.D., 72mm O.D., 17mm Race Width
Reliable sprag clutch bearing with 35mm I.D. for optimal performance in various applications.
Manufacturer part number: CSK 35-P
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 35mm
Outside Diameter = 72mm
Torque = 175Nm
Race Width = 17mm
Series = 62
Over-running Speed = 3600rpm
Dynamic Load Rating = 12.6kN
Static Load Rating = 7.28kN
Keyway = Inner and Outer Race
Drag Torque = 5.8Ncm
Types CSK.P and CSK.PP are sprag type freewheels integrated into 62. series ball bearings (except size 40). They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional “;nylos”; type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
