Key Features:

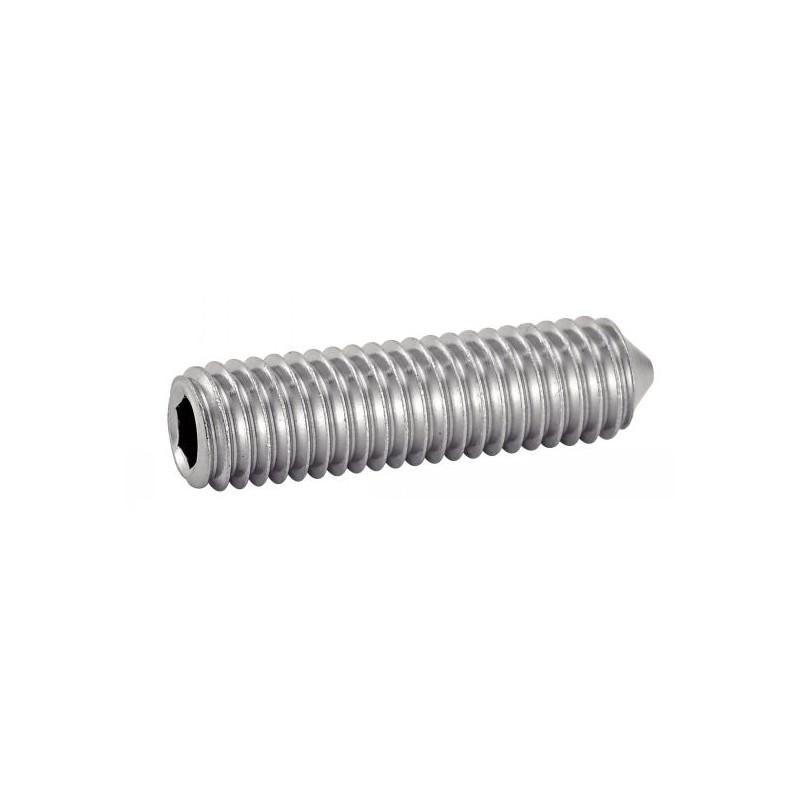

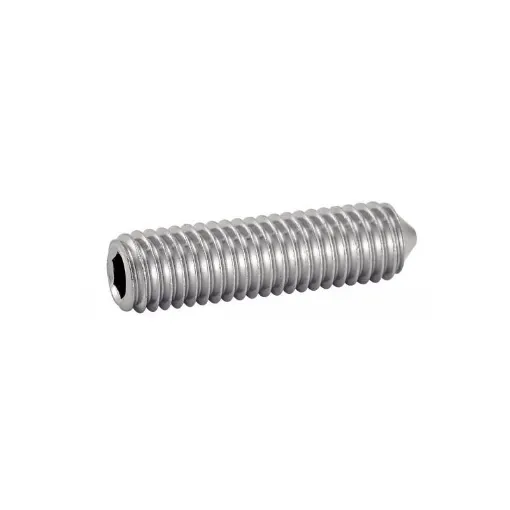

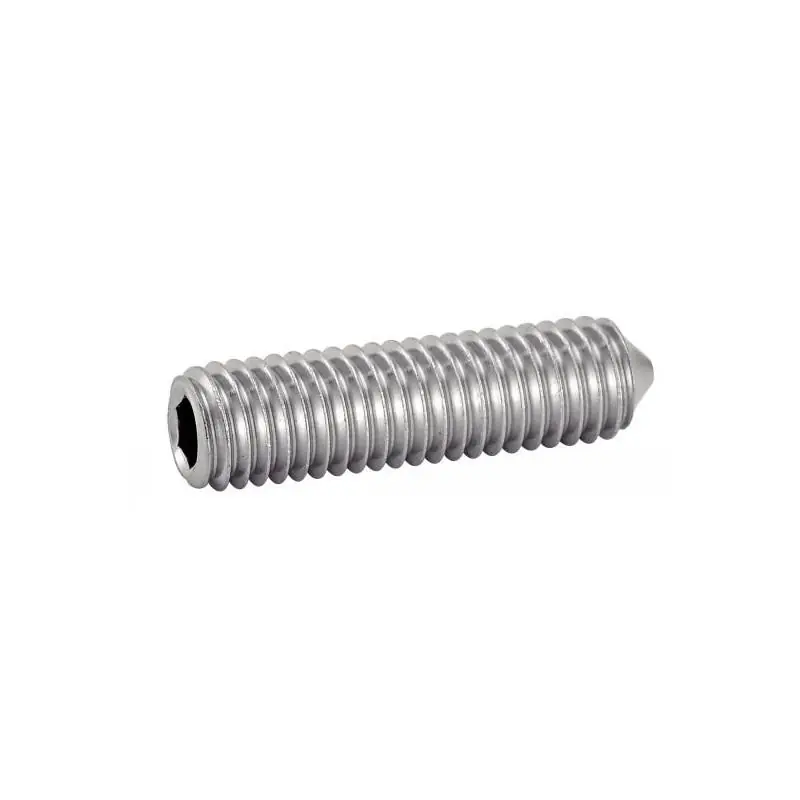

- Headless design with a hexagonal hollow socket and pointed end
- Made from Inox A4 (marine-grade 316 stainless steel)
- Complies with ISO 4027 standards, similar to DIN 914, NFE 27-181, and UNI 5927
Technical Specifications:
- Diameters (d): M3, M4, M5, M6, M8
- Thread Depth (dt): 0.75 mm for M3, 1 mm for M4, 1.25 mm for M5, 1.5 mm for M6, 2 mm for M8
- Socket Size (s): 1.5 mm for M3, 2 mm for M4, 2.5 mm for M5, 3 mm for M6, 4 mm for M8
- Socket Depth (e): 1.73 mm for M3, 2.3 mm for M4, 2.87 mm for M5, 3.44 mm for M6, 4.58 mm for M8
- Minimum Thread Length (t): 1.2 mm for M3, 1.5 mm for M4, 2 mm for M5, 2 mm for M6, 3 mm for M8
- Pitch: 0.5 mm for M3, 0.7 mm for M4, 0.8 mm for M5, 1 mm for M6, 1.25 mm for M8
Materials:
- Inox A4 (marine-grade 316 stainless steel)
Dimensions:
- Available in diameters M3, M4, M5, M6, and M8
- Length (L) varies based on selection
Compatibility Information:
- Suitable for applications requiring corrosion resistance, such as marine environments, food industry, and shipbuilding
Additional Details:
- Ideal for applications requiring a headless screw with a hexagonal socket and pointed end
- Meets ISO 4027 standards, ensuring professional quality and easier identification of similar products
