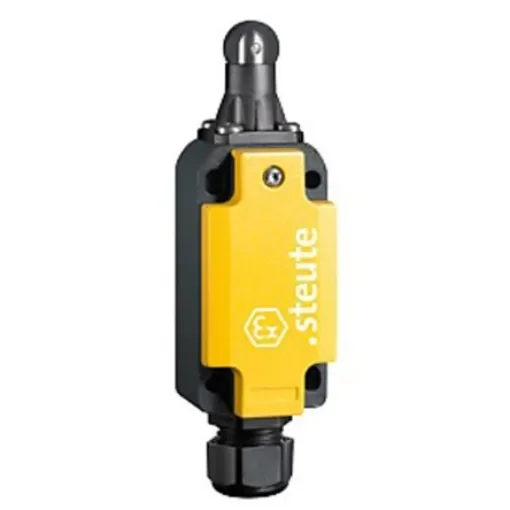

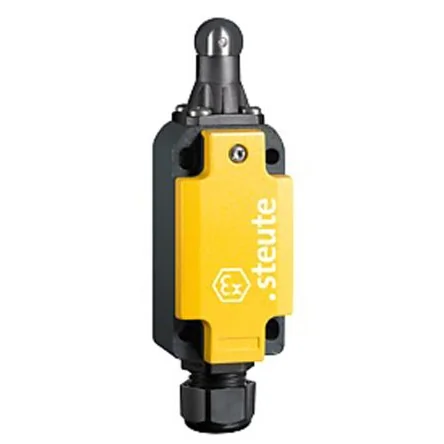

Steute Ex 98 Series Roller Plunger Limit Switch, 2NC, IP66, DPST, Aluminium Housing, 250V ac Max, T6 4.4A Max - Ex ES 98 R -02 -40C
Reliable roller plunger limit switch with IP66 rating for enhanced safety in industrial applications.
Manufacturer part number: Ex ES 98 R -02 -40C
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Roller Plunger
Pole and Throw Configuration = DPST
Normal State Configuration = 2NC
Maximum Current = T6 4.4 A, T5 6.6A
Housing Material = Aluminium
Maximum AC Voltage = 250V
Maximum DC Voltage = 125V
Connection Type = Cable
Action Type = Positive Break, Slow Action
Length = 1016mm
Depth = 1092.2mm
Mounting Orientation = VerticalOperations
EX 98 Limit Switches. Steute Ex 98 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security. The Ex 98 limit switches feature slow action positive break NC contacts and are available with various contact configurations. Features and Benefits. Ex zone 1 and 21. Corrosion-resistant aluminium enclosure. IP66 Rated. Actuator can be repositioned by 4 x 90°. Wide range of actuators
