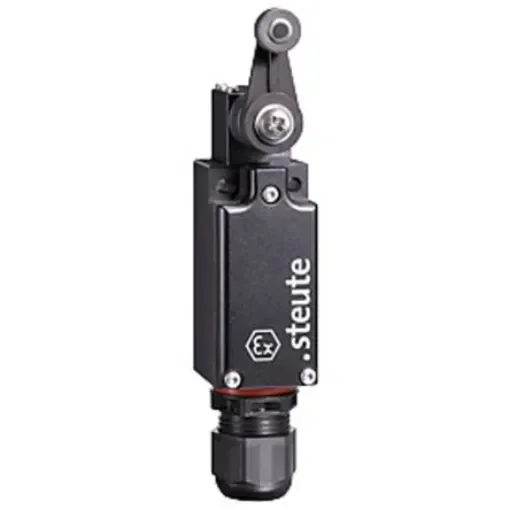

Steute Ex 97 Series Lever Limit Switch, NO/NC, IP66, IP67, IP69, DPST, Thermoplastic Housing, 500V ac Max, 4A Max - Ex ES 97 D 11 -60 c
Reliable Steute Ex 97 limit switch with high IP ratings for secure machine operation.
Manufacturer part number: Ex ES 97 D 11 -60 c
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Lever
Pole and Throw Configuration = DPST
Normal State Configuration = NO/NC
IP Rating = IP66, IP67, IP69
Maximum Current = 4A
Housing Material = Glass Fibre Reinforced Thermoplastic
Maximum AC Voltage = 500V
Connection Type = Cable
Series = Ex 97
Action Type = Positive Break, Slow Action
Length = 787.4mm
Width = 2895.6mm
Mounting Orientation = VerticalOperations
Supplied with 1 Ex "e" cable gland, M20x1.5. EX 97 Limit Switches. Steute Ex 97 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security. The Ex 97 limit switches feature slow or snap action, positive break NC contacts and are available with various contact configurations. Features and Benefits. Ex zone 1 and 21. Thermoplastic enclosure, double insulated. Mounting details to EN 50047. High degree of protection IP66 / IP67 / IP69. Wide range of actuators
