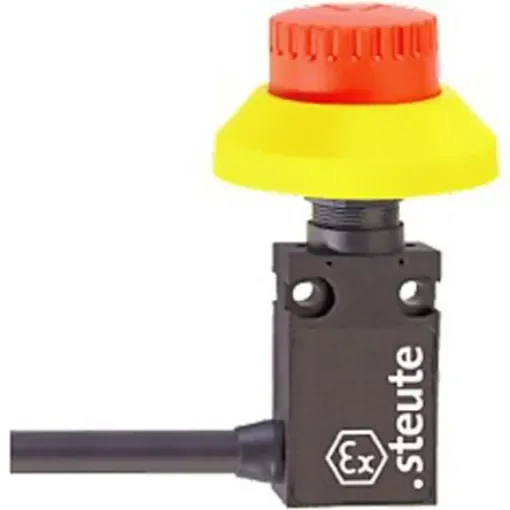

Steute Ex 14 Series Push Button Limit Switch, NO/NC, IP65, DPST, Thermoplastic Housing, 250V ac Max, 250 V ac 6 A, 230 - Ex 14 RUV-S 2O-5m
Ensure safety and control with the Steute Ex 14 Push Button Limit Switch, designed for industrial applications.
Manufacturer part number: Ex 14 RUV-S 2O-5m
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Push Button
Pole and Throw Configuration = DPST
Normal State Configuration = NO/NC
IP Rating = IP65
Maximum Current = 250 V ac 6 A, 230 V dc 250mA
Housing Material = Glass Fibre Reinforced Thermoplastic
Maximum AC Voltage = 250V
Maximum DC Voltage = 230V
Connection Type = Cable
Series = Ex 14
Action Type = Positive Break, Slow Action
Width = 1778mm
Mounting Orientation = VerticalOperations
EX 14 Limit Switches. Steute Ex 14 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security. The Ex 14 limit switches feature slow action positive break NC contacts and are available with various contact configurations. Features and Benefits. Ex zone 1 and 21. Thermoplastic enclosure, double insulated. Mounting details to EN 50047. Suitable for inline mounting. With pre-wired cable. Wide range of actuators
