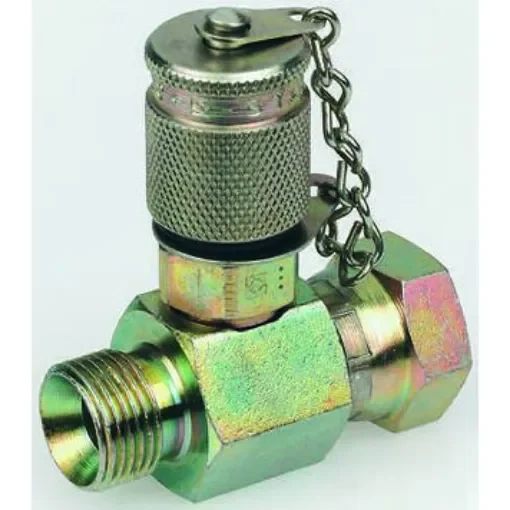

Stauff Hydraulic Test Point G 3/4 Male and G 3/4 Female, 3/4" M/F + SMK 20 R1/8 VC ASSM

Connection A Thread = G 3/4 Male
Connection A - Thread Size = 3/4in
Connection A - Thread Standard = G
Connection B - Thread Size = 3/4in
Port Thread = Metric 16
Connection B Thread = G 3/4 Female
Maximum Operating Pressure = 400bar
Connection B - Gender = Female
Connection A - Gender = Male
Connection B - Thread Standard = G
Maximum Operating Temperature = +120°C
Minimum Operating Temperature = -20°C
Port Thread Standard = Metric
Port Thread Size = 16

It is essential that tube with an adequate wall thickness for the appropriate working pressures be used with these products and systems. BSP Inline 60° Test Point Adaptor. Test point thread M16 60º coned BSP male thread one end and female swivel nut on other end Allows in-line direct mounting between flexible hose assemblies or other suitably machined parts
