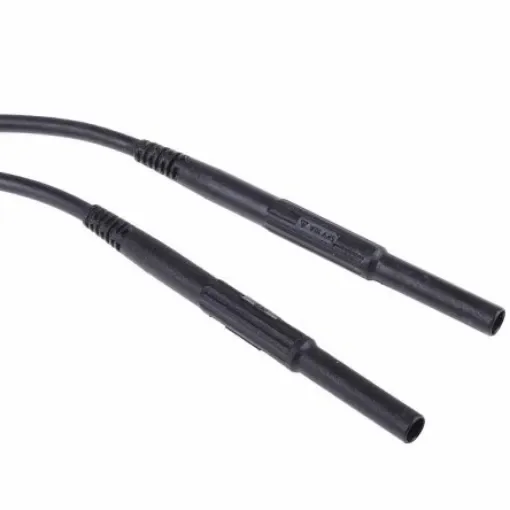

Staubli Test lead, 10A, 1kV, Black, 1.5m Lead Length - 66.9425-150-21

Lead Length = 1.5m
Current Rating = 10A
Colour = Black
Voltage Rating = 1 kV, 5kV
Connector A Gender = Male
Connector B Gender = Male
Connector A Orientation = Straight
Connector B Orientation = Straight
Contact Material = Brass, Copper Alloy
Insulation Material = TPEV
Minimum Operating Temperature = -30°C

For safety reasons, the lead is only compatible with XHB-5000 panel socket. 5kV Connecting Lead XHM-5000. 1.5m long highly flexible test lead has in-line Ø4mm Multilam™ plug with rigid insulating sleeve on both ends. Cable insulation is thermoplastic elastomer TPE. It is environmentally friendly halogen free, with extremely high insulation resistance 1.5x10 ;sup>14 ;/sup>O. Voltage rating 5kV CAT I (ie. Output voltage of Test instrument) or 1000V CAT IV to IEC/EN61010-031:2002 Current rating 10A
