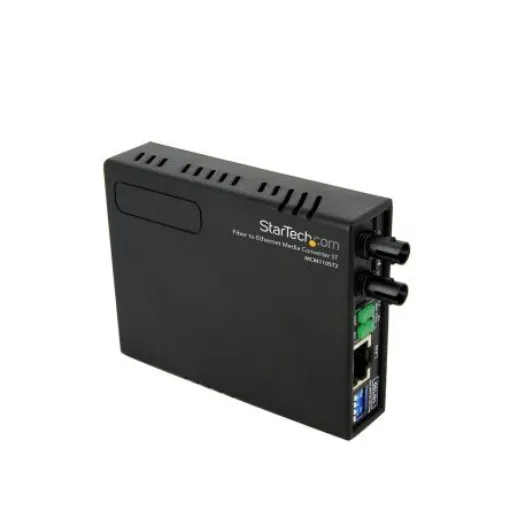

StarTech.com RJ45, ST Media Converter, Multi Mode, Half/Full Duplex 2km - MCM110ST2GB

MCM110ST2GB Fiber Media Converter This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone. Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off. Features & Benefits • 1310nm wavelength • Auto detects half/full duplex transfer mode from the TX port. • Auto negotiation or Force 10/100 Mbps and MDI/MDI-X (Crossover for TX port). • Compatible with 3COM™, Cisco™, Lucent™ and Nortel™ networks • Forward 9K jumbo packets in converter mode • It’s compact design and weight makes it portable and unobtrusive to carry • LED Indicators for simple Ethernet/Fiber network link monitoring • Provides switch configuration of half/full duplex transfer mode for FX port. • Support flow control (Pause) • Supports a maximum multi mode fiber optic cable distance of 2 km • Supports a maximum packet size of 1600 bytes. • Supports IEEE 802.1q Tag VLAN pass thru • Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards • Supports Link Fault Pass through (LFP) • Supports Q in Q double tagged frame transparent • Includes both the UK and EU power plug adapters • Best value fiber media converter • Easily installed into any scenario with little to no configuration needed • Free Lifetime Technical Support • Lightweight design can be mounted anywhere Applications • Connect remote sub-networks to larger fiber optic networks/backbones • Connect via fiber optics two or more buildings on the same campus • Designed for ethernet expansion, primarily for large workgroups requiring higher network speeds and increased bandwidth • Extend your Ethernet connection up to 2km away at full speed using fiber optics. What’s in the package? • Media Converter • UK power plug adapter • Power Adapter • Users Manual FAQs What is the maximum distance the converter supports? The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
