Key Features:

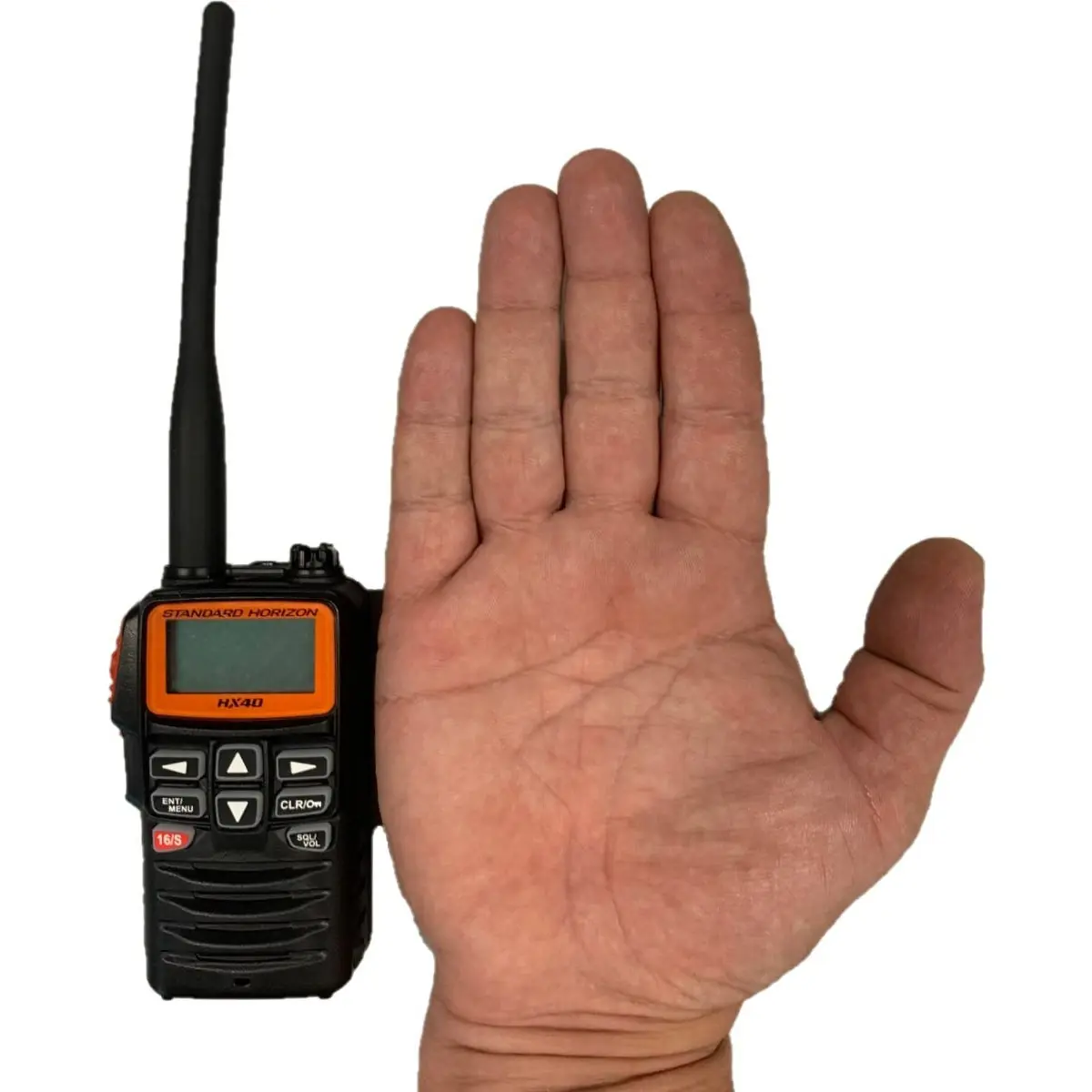

- Ultra-Compact Design: Measuring 52mm W × 95mm H × 33mm D, the HX40E is approximately the size of a deck of playing cards, making it easy to carry and store.
- Waterproof and Buoyant: Submersible to IPX7 standards (1 meter for 30 minutes). When fitted into the optional flotation case SHC-29, it becomes buoyant.
- Transmission Power: Selectable 6W, 2.5W, or 1W output, providing flexibility based on communication needs.
- Audio Output: Delivers a loud 600mW audio output for clear communication.
- Intuitive Menu System: The Easy to Operate (E2O) menu allows easy access to all setup functions, enabling customization based on user preferences.
- FM Radio Receiver: Tuned to FM broadcast bands between 76 MHz and 108 MHz, allowing users to listen to their favorite FM stations.
- Weather Channels: Equipped with NOAA weather channels and weather alerts for real-time updates.
- Preset Channels: A preset key recalls up to 10 favorite channels for quick access.
- Multi-Watch Functionality: Supports Dual Watch and Triple Watch modes for monitoring multiple channels simultaneously.
- Battery Life: Built-in 1850mAh lithium polymer battery offers over 10 hours of standby time.
- Warranty: Comes with a 3-year waterproof warranty, ensuring durability and reliability.
Technical Specifications:
- Dimensions: 52mm W × 95mm H × 33mm D
- Weight: 230g
- Battery: Built-in Lithium Polymer 1850mAh
- Transmission Power: 6W (HI), 2.5W (MEDIUM), 1W (LOW)
- Frequency Range:
- Transmit: 156.025MHz – 161.600MHz
- Receive: 156.050MHz – 163.275MHz
- Channel Spacing: 25kHz
- Emission Type: 16KOG3E
- Operating Voltage: 7.4V
- Current Consumption:
- Receive: 330mA
- Standby: 100mA
- FM Receiver: 65MHz – 108MHz
Materials: The HX40E is constructed with durable materials to withstand marine environments, featuring a robust casing that ensures longevity and reliability.
Compatibility Information: The HX40E is compatible with all USA, International, and Canadian marine channels.
