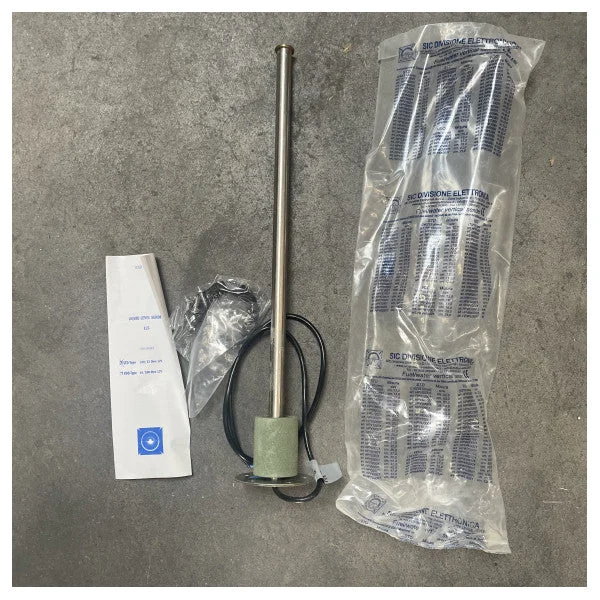

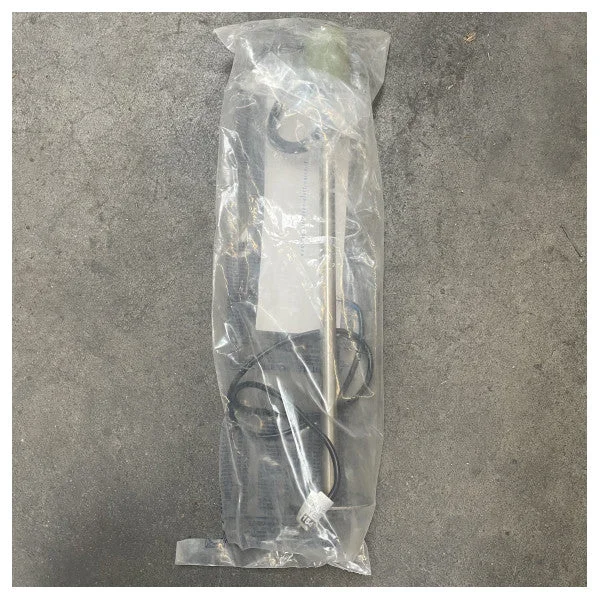

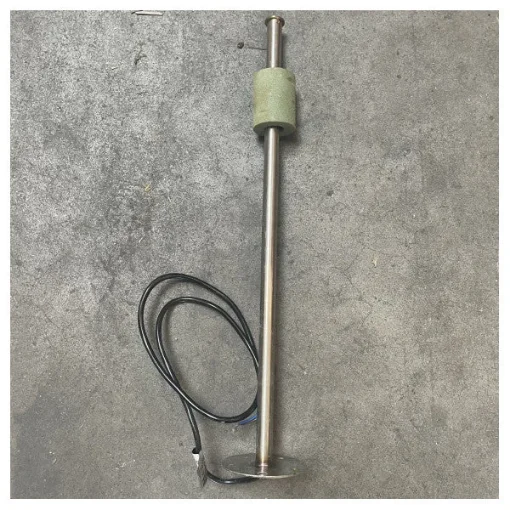

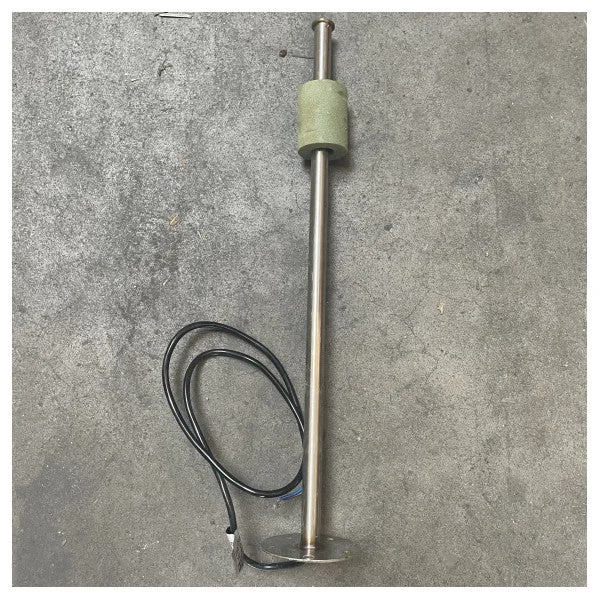

Stainless Steel Liquid Level Sensor STD-Type 40 cm - Reliable Fuel and Water Measurement
The Stainless Steel STD-Type Liquid Level Sensor with a length of 40 cm is the ideal solution for accurately monitoring liquid levels in various tanks. Whether it is a fuel tank in a vehicle or a water tank on a boat, this robust sensor from the brand HPYB001 delivers consistent performance under harsh conditions.
Durable Design and High-Quality Materials
This sensor is made from high-quality stainless steel, making it highly resistant to corrosion and long-term use in liquids. The design is based on the well-known STD-Type, which stands for a simple yet highly effective float measurement. The sensor operates at a voltage of 12V and is directly compatible with most standard onboard systems and dashboard meters.
Key Features of the HPYB001/40cm
- Accurate Resistance: The sensor has a resistance range of 240 to 33 Ohm, which is the standard for many American and universal meters (240 Ohm when the tank is empty and 33 Ohm when the tank is full).
- Optimal Length: With a total length of 400 mm (40 cm), this unit is suitable for medium-sized tanks where deep measurement is required.

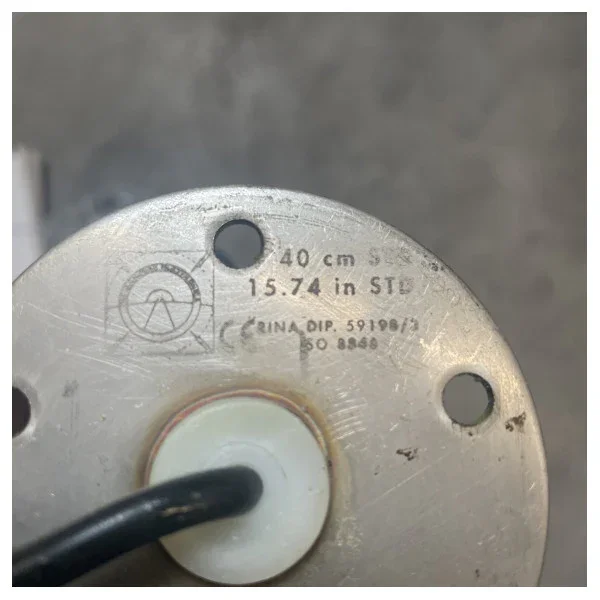

- Easy Installation: Thanks to the standard mounting pattern, the sensor can be quickly and leak-free installed in existing tank systems.
- Wide Applicability: Suitable for both diesel, petrol, and water, provided the liquid does not affect the materials of the sensor.
Technical Specifications
In the table below, you will find the exact data for this model, ensuring it matches your current instrument panel.
- SpecificationValueModel NumberHPYB001/40cmMaterialStainless SteelLength40 cm (400 mm)Resistance Range240 Ohm (Empty) - 33 Ohm (Full)Voltage12 VoltSensor TypeSTD-Type Float
