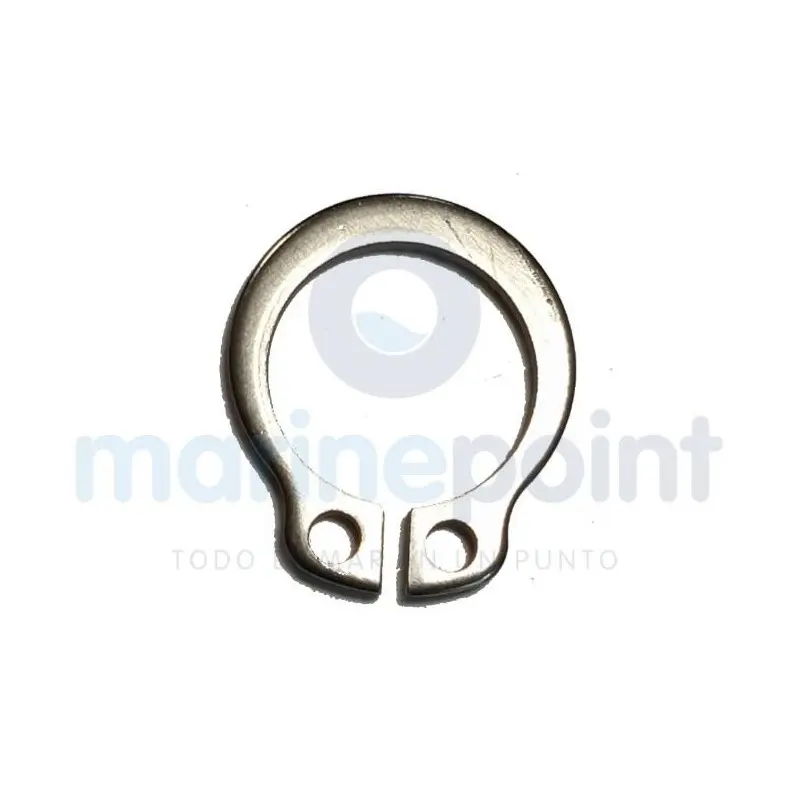

External Seeger rings are essential components in the assembly of shafts, bearings, and rotating mechanisms on board, ensuring reliable fastening under adverse conditions.
Technical Specifications
- Type: External Seeger ring
- Inner diameter: 14 mm
- Thickness: 1.5 mm
- Standard: DIN 471
- Material: Stainless steel (usually AISI 304/316*)
*Confirm the type of steel if higher corrosion resistance is required.
Advantages
- High mechanical and fatigue resistance
- Unaffected by marine environments and chemical agents
- Effective for securing components without damaging the shaft
Common Applications
- Retention of bearings on shafts and housings
- Assembly of rotating components in small transmissions
- Ideal for engines, pumps, or windlasses on any vessel
Usage and Maintenance Tips
- Use specific Seeger pliers for installation and removal.
- Regularly inspect the rings, especially after long inactivity periods.
- Clean the rings with fresh water after every navigation to prolong their lifespan.
Compatibility
Compatible with housings, shafts, or standard DIN471 grooves of 14 mm diameter.
| Inner Diameter | Thickness | Standard | Material |
|---|
| 14 mm | 1.5 mm | DIN 471 | Stainless steel |
