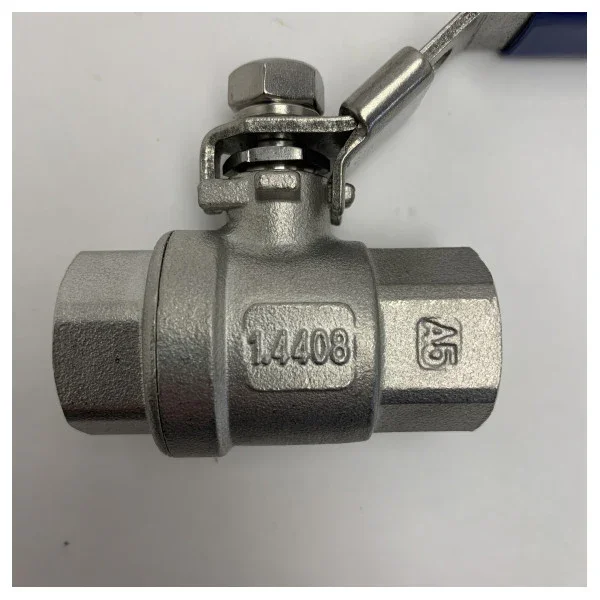

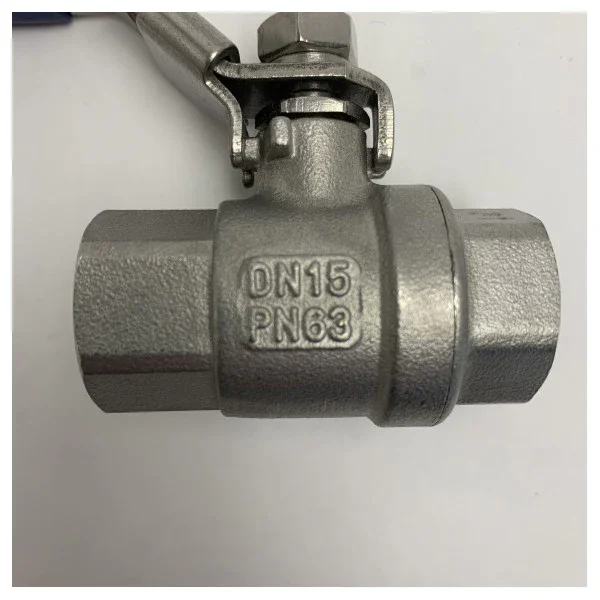

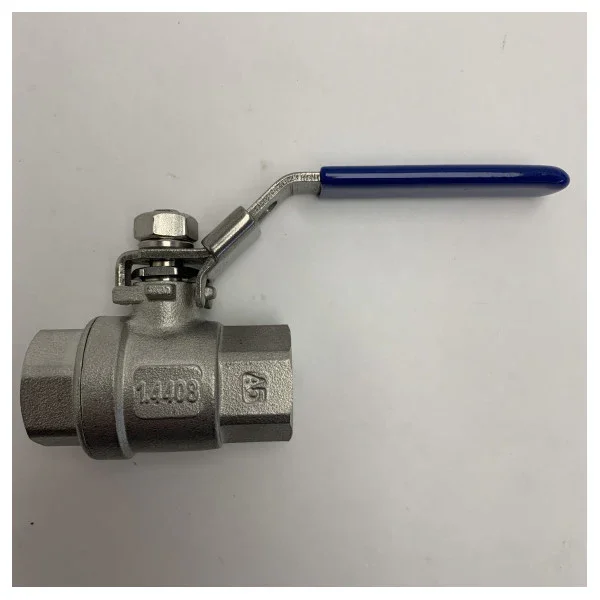

Stainless Steel Ball Valve DN15 PN63 - High-Quality Stainless Steel Shut-off Valve
The Stainless Steel Ball Valve DN15 PN63 is an industrial ball valve designed for optimal reliability and a long service life. This shut-off valve is made from high-quality stainless steel, making the product extremely suitable for systems where corrosion resistance and chemical resistance are essential. Thanks to the robust construction, this valve provides a safe solution for both liquids and gases under high pressure.
Durability and Performance
This ball valve features a full bore, which ensures minimal resistance and efficient flow of the medium. With a pressure class of PN63, this shut-off valve can withstand working pressures up to 63 bar, making it superior to standard valves. The operation is smooth via the ergonomic handle, which is also equipped with a locking mechanism to prevent unwanted operation.
Key Features
- Corrosion Resistant: Fully constructed from stainless steel for use in demanding environments.
- High Pressure Resistance: Suitable for applications up to PN63 bar.
- Full Bore: Guarantees maximum flow and prevents pressure loss in your piping system.
- Reliable Sealing: Equipped with high-quality PTFE seals for a leak-free closure.
- Easy Installation: Standard internal thread connection for quick installation in existing systems.
Specifications of the DN15 Ball Valve
The technical details of this Stainless Steel Ball Valve are as follows:
- Size: DN15 (corresponding to a 1/2 inch connection).
- Maximum Working Pressure: PN63 (suitable for systems up to 63 bar).
- Housing Material: Stainless steel (RVS 316 or 304 quality).
- Type of Fitting: Two-piece ball valve with internal thread.
- Sealing Material: PTFE (Teflon) for chemical resistance.
- Operation: Manual via a stainless steel lever with locking mechanism.
- Temperature Range: Suitable for temperatures from minus 20 to plus 180 degrees Celsius.
