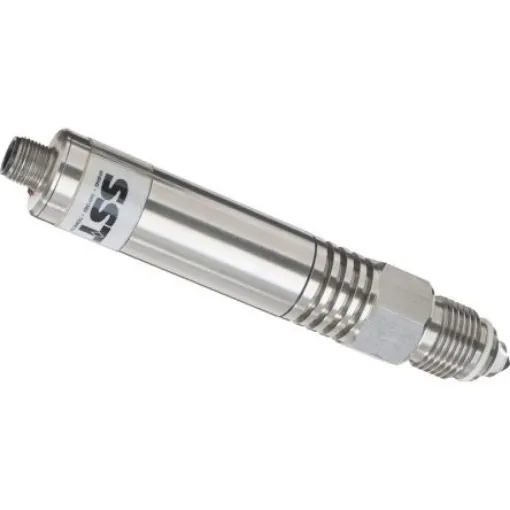

SSt Sensing Limited POS Series Liquid Level Switch Level Switch, NPN Output, Threaded Mount, Stainless Steel 304 Body - POS287411
Reliable liquid level switch with NPN output, designed for harsh environments.
Manufacturer part number: POS287411
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Liquid Level Switch
Mounting Type = Threaded Mount
Switch Output = NPN
Body Material = Stainless Steel 304
Minimum Operating Temperature = -25°C
Maximum Operating Temperature = +140°C
Maximum DC Voltage = 30V
Maximum Current = 25 mA
Maximum Pressure = 80bar
Series = POS
Current Rating = 25 mA
Designed for applications requiring a robust metal housing and a wide operating temperature range Reverse polarity, ESD, transient over-voltage and short circuit protected Wide supply voltage ranges N and P type output configurations, capable of sinking or sourcing up to 200mA, can directly drive small loads Standard and extended temperature ranges available Stainless steel housing with simex glass sensing tip Choice of terminations Very high operating pressure LED output indication Solid state so no moving parts to cause unreliability Fast response time Repeatable switching point Very robust construction permitting use in a wide range of demanding applications Compatible with most fluids and chemicals SST Sensing’s highest operating temperature liquid level switch
