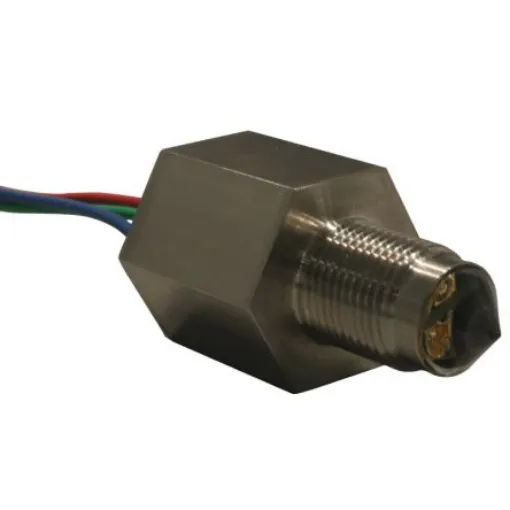

SSt Sensing Limited OPTOMAX LLC210 Series Liquid Level Switch Level Switch, NPN Output, Threaded Mount, Stainless Steel - LLG210D3L24-003

Device Type = Liquid Level Switch
Mounting Type = Threaded Mount
Switch Output = NPN
Body Material = Stainless Steel 316L
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +125°C
Maximum DC Voltage = 30V
Maximum Current = 7.5 mA
Maximum Pressure = 100bar
Series = OPTOMAX LLC210
Current Rating = 7.5 mA

Reverse polarity, ESD, transient over-voltage and short circuit protected Wide supply voltage ranges N and P type output configurations, capable of sinking or sourcing up to 200mA, can directly drive small loads Standard and extended temperature ranges available Thread options for external mounting Stainless steel housing with simex glass sensing tip Very high operating pressure Built-in output delays available on request for applications where sloshing causes intermittent switching Solid state so no moving parts to cause unreliability Fast response time Repeatable switching point Very robust construction permitting use in a wide range of demanding applications Compatible with most fluids and chemicals SST Sensing’s highest operating temperature liquid level switch Small in size so they can be installed in applications where space is limited Can detect tiny amounts of liquid when positioned correctly, ideal for leak detection
