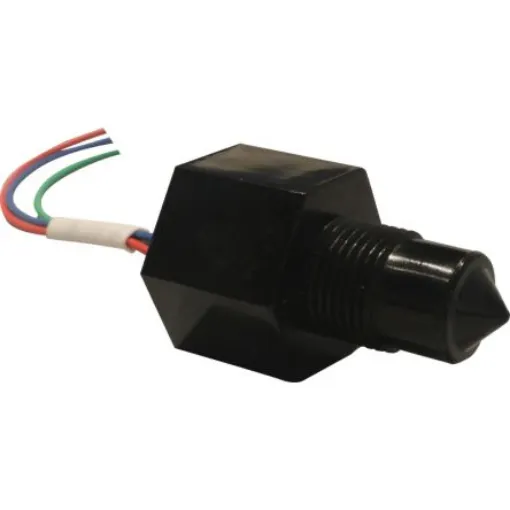

SSt Sensing Limited OPTOMAX LLC210 Series Liquid Level Switch Level Switch, NPN Output, Threaded Mount, Polysulfone Body - LLC210D3L24-003
Reliable liquid level switch with NPN output, ideal for precise detection in various applications.
Manufacturer part number: LLC210D3L24-003
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Liquid Level Switch
Mounting Type = Threaded Mount
Switch Output = NPN
Body Material = Polysulfone
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +125°C
Maximum DC Voltage = 30V
Maximum Current = 7.5 mA
Maximum Pressure = 7bar
Series = OPTOMAX LLC210
Current Rating = 7.5 mA
Reverse polarity, ESD and transient over-voltage protected Wide supply voltage range Push-pull output, capable of sinking or sourcing up to 100mA, can directly drive small loads Optional fail-safe PWM output Standard and extended temperature ranges available Polysulfone or Trogamid housing material options Internal or external mounting options High pressure option available Solid state so no moving parts to cause unreliability Small in size so they can be installed in applications where space is limited Can detect tiny amounts of liquid when positioned correctly, ideal for leak detection Fast response time Repeatable switching point Built-in output delays available on request for applications where sloshing causes intermittent switching Very robust permitting use in a wide range of fluids and chemicals
