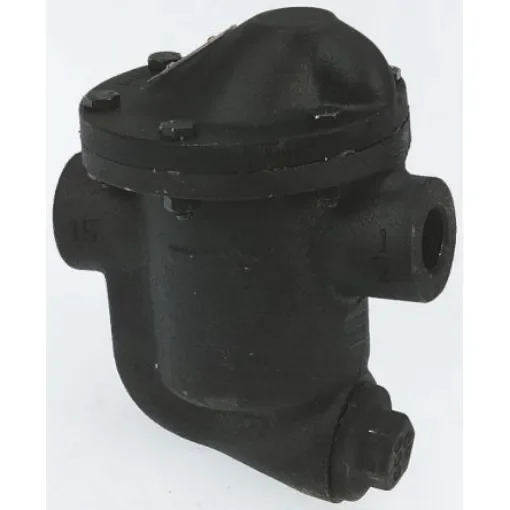

Spirax Sarco 8.5 bar Iron Inverted Bucket Steam Trap, 1/2 in BSP Female - 670200

Trap Type = Inverted Bucket
Connection = 1/2 in BSP Female
Orientation = Vertical
Maximum Working Pressure = 8.5 bar
Maximum Temperature = +300°C
Body Material = Iron
Gasket Material = Graphite
Connection Gender = Female
Connection Size = 1/2in
Thread Standard or Connection Type = BSP

Inverted Bucket Steam Trap HM Series. In-line connections screwed BSP Simple and robust mechanism for long life Suitable for superheat conditions when fitted with inlet check valve Choice of valve mechanisms to match precise condensate load and pressure differentials Deep water seal to protect against the possibility of steam loss Inbuilt strainer Maximum operating temperature 300°C
