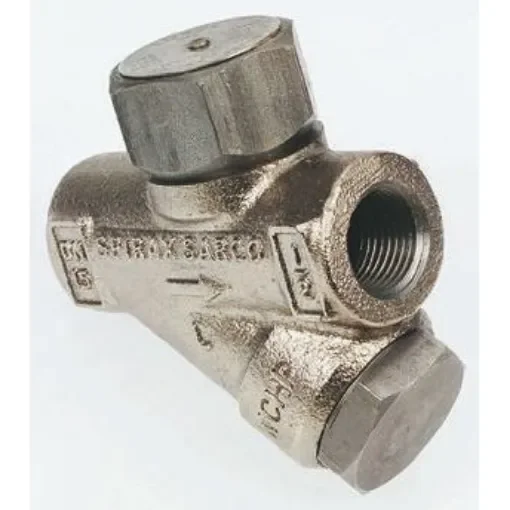

Spirax Sarco 42 bar Stainless Steel Thermodynamic Steam Trap, 1/2 in BSP Female - 688700

Trap Type = Thermodynamic
Connection = 1/2 in BSP Female
Orientation = Horizontal
Maximum Working Pressure = 42 bar
Maximum Temperature = +400°C
Body Material = Stainless Steel
Gasket Material = Stainless Steel
Connection Gender = Female
Connection Size = 3/4in
Thread Standard or Connection Type = BSP

TD42L version ; 365-6296 365-6296 , ; 365-6280 365-6280 TD42H version ; 365-6325 365-6325 , ; 365-6319 365-6319. Thermodynamic Steam Traps. TD42L and TD42H. TD42L designed for relatively small condensate loads and ideal for mains drainage applications. TD42H is ideal for process type loads Screwed BSP with in-built strainer Compact and lightweight, reducing installation costs Positive discharge with clean tight shut-off. No back-up of condensate ensures maximum plant efficiency Robust construction to guarantee long life against superheat, water-hammer, freezing and vibration Can be installed in both horizontal and vertical positions reducing installation problems
