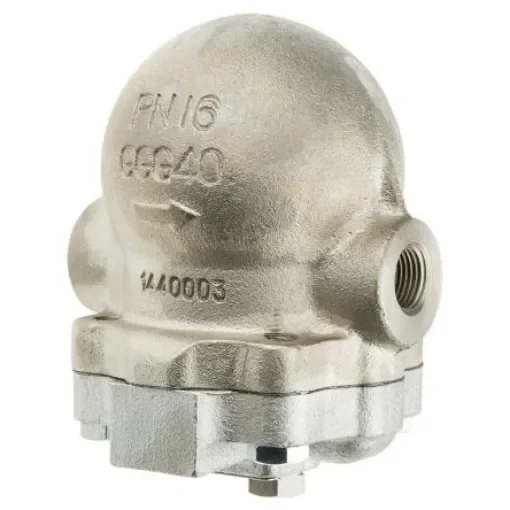

Spirax Sarco 14.6 bar Stainless Steel Ball Float Steam Trap, 3/4 in BSP - 1458400

Trap Type = Ball Float
Connection = 3/4 in BSP
Orientation = Horizontal
Maximum Working Pressure = 14.6 bar
Maximum Temperature = +250°C
Body Material = Stainless Steel
Gasket Material = Graphite
Connection Size = 3/4in
Thread Standard or Connection Type = BSP

Ball Float Steam Trap FTGS14. The FT range of ball float steam traps from Spirax Sarco are the most popular mechanical steam traps in the world. The new FTGS14 has been designed to offer perfect condensate drainage and air venting for process, heating and mains drainage applications. With a substantial network of experienced steam specialists in the world, Spirax Sarco can support you in the effective use and operation of your steam and process plant. Features and Benefits. Stainless steel base for longer life and low maintenance Easy to replace No live steam loss Erosion resistant Effective condensate drainage Quick start-up Impact resistant. Product Application Information. Ideal for use handling variable loads associated with temperature controlled heat exchangers. Can also be used in rotating drying cylinders as the ball float steam trap has a steam lock release facility.
