Key Features:

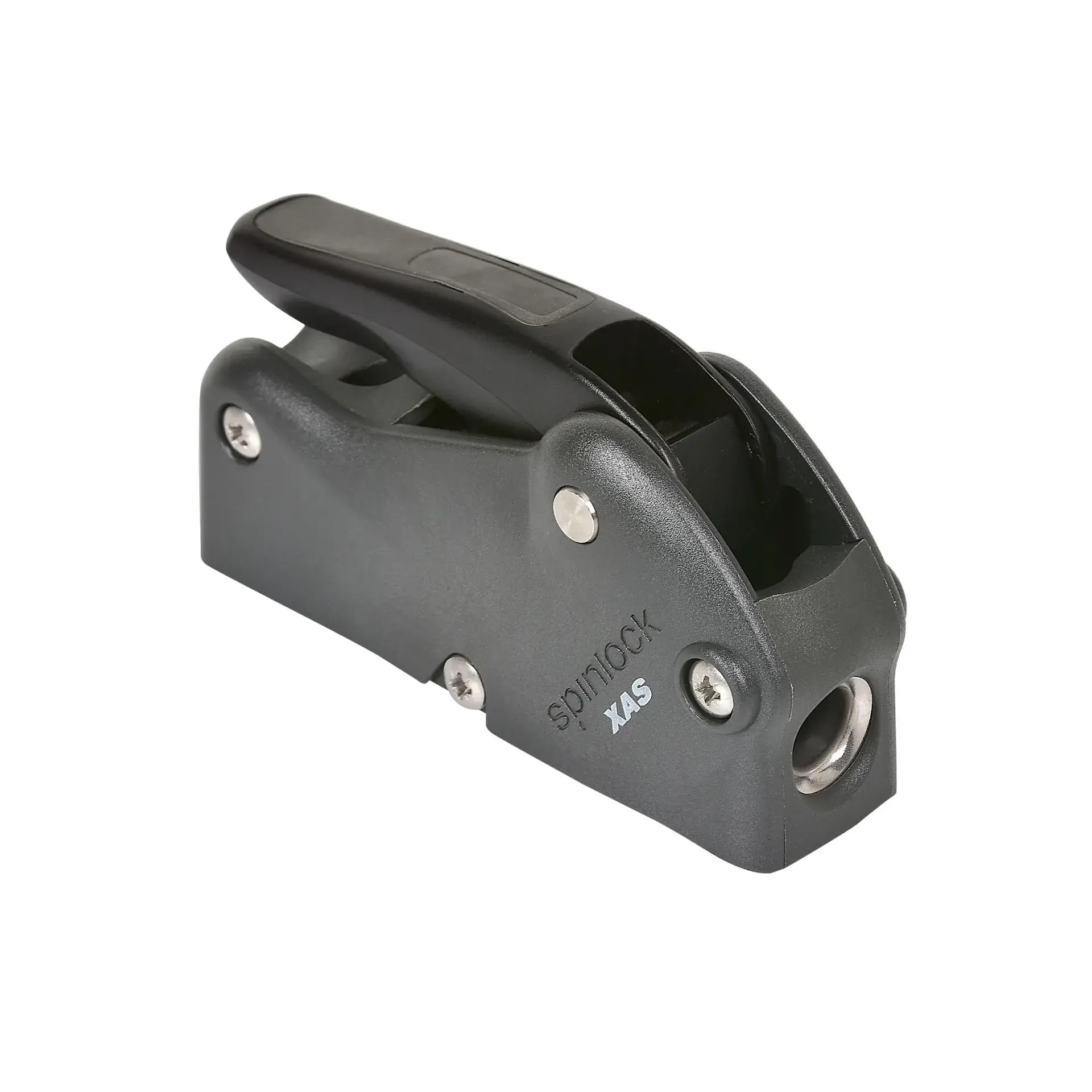

- Multi-Role Clutch: Designed for versatile use across a wide range of rope diameters, making it suitable for various sailing applications.
- Effortless Release: Equipped with an easy-access handle for quick and smooth release of ropes.
- Line-Friendly Design: Constructed to be gentle on ropes, preserving their integrity over time.
- Side Mountable: Can be mounted on the side of the deck or mast, offering flexible installation options.
- Replaceable Parts: Features replaceable components, facilitating easy upgrades and maintenance.
Technical Specifications:
- Rope Diameter Compatibility:
- XAS0408: 4-8 mm (5/32" - 5/16")
- XAS0612: 6-12 mm (1/4" - 1/2")
- Safe Working Load (SWL):
- XAS0408: Up to 450 kg (990 lbs)
- XAS0612: Up to 575 kg (1270 lbs)
- Weight:
- Single Version: 270 g (9.5 oz)
- Double Version: 500 g (17.5 oz)
- Triple Version: 680 g (23.8 oz)
- Fasteners:
- Single Version: 2 x M6 (1/4") countersunk head screws (not supplied)
- Double Version: 4 x M6 (1/4") countersunk head screws (not supplied)
- Triple Version: 6 x M6 (1/4") countersunk head screws (not supplied)
Materials: Constructed with durable materials to ensure longevity and reliable performance in marine environments.
Dimensions: Specific dimensions vary based on the model and configuration. For detailed measurements, refer to the manufacturer's specifications.
Compatibility Information: The XAS Clutch is compatible with various rope diameters and can be side-mounted using the XAS-SMNT kit, which is available separately.
